Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
| Tool Properties | ||
|---|---|---|

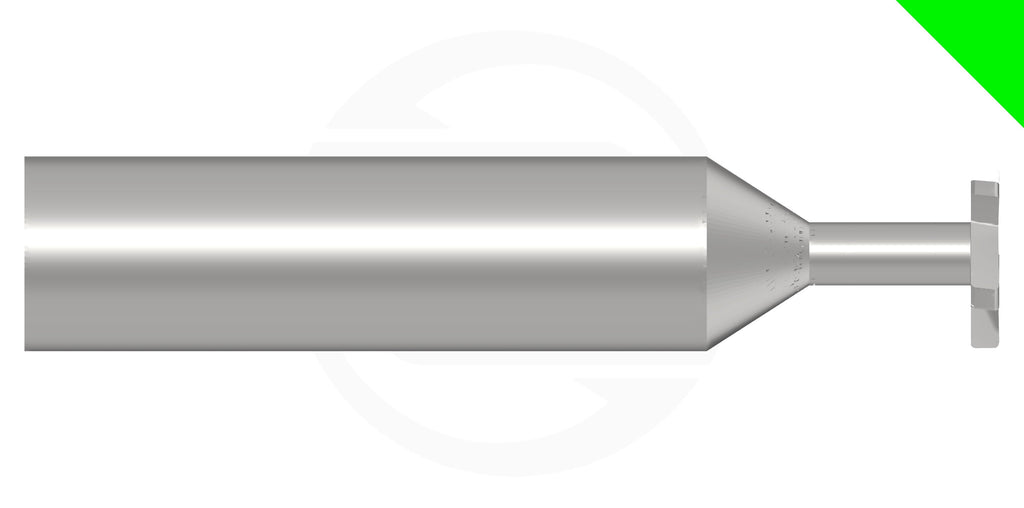

| Name | GRNCHIRPR-20.00S3.00-0727878-U40CG1 (0727878) | |
| EDP # | 0727878 | |
| Material | Wrought Aluminum | Application | Finish Flank Milling <20k RPM (Chirper) |
| Form | Slot Mill | |
| Cutting Diameter | 0.7874" | 20.000 mm |
| Slot Thickness | 0.1181" | 3.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.1181" | 3.000 mm |
| Reach | 0.6496" | 16.500 mm |
| Minimum Extension | 1.0" | 25.0 mm |
| Maximum Extension | 2.8" | 71.6 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.0" | 101 mm |
| Cutting Edges | 6 | |
