Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
| Tool Properties | ||
|---|---|---|

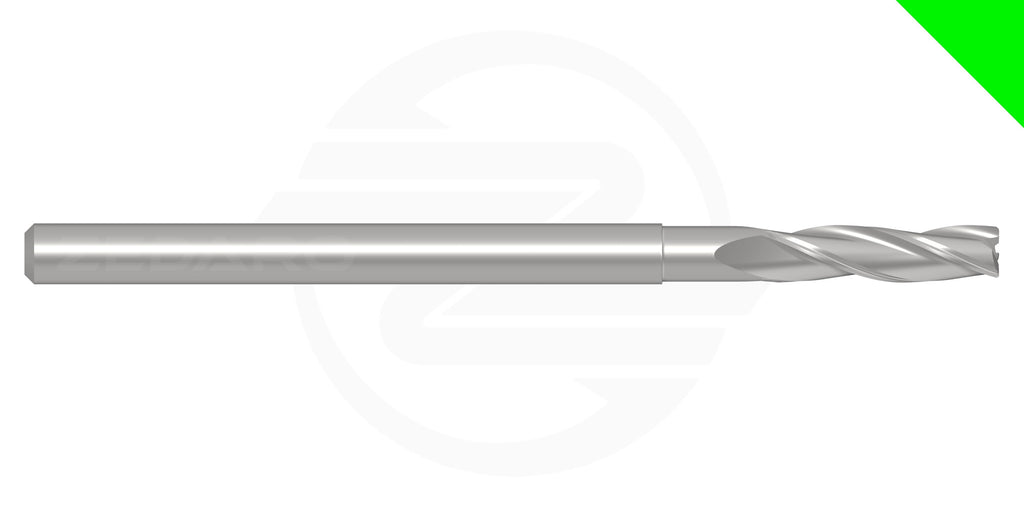

| Name | GRNSTRIPR-6.000N0.25-35.0CON35.0-G40CE1 (0727889) | |
| EDP # | 0727889 | |
| Material | Wrought Aluminum | Application | General Milling <20k RPM (Striper) |
| Form | Chamfered End Mill | |
| Cutting Diameter | 0.2362" | 6.000 mm |
| Corner Size (45 deg.) | 0.0098" | 0.250 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.9449" | 24.000 mm |
| Reach | 1.3780" | 35.000 mm |
| Minimum Extension | 1.4" | 35.0 mm |
| Maximum Extension | 3.6" | 92.1 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 4.0" | 101 mm |
| Cutting Edges | 3 | |
