Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Grazer' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds up to 20K rpm and which can be used for almost anything.
'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
| Tool Properties | ||
|---|---|---|

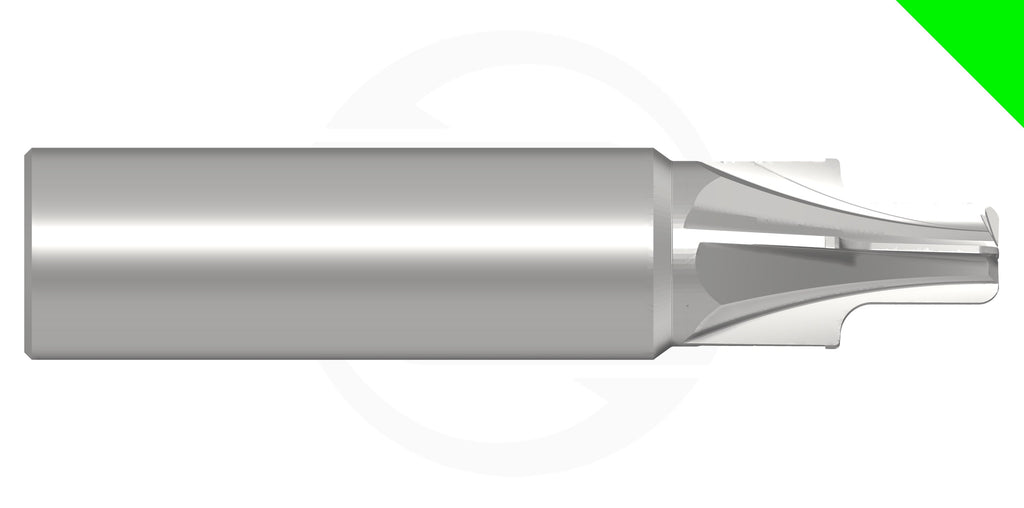

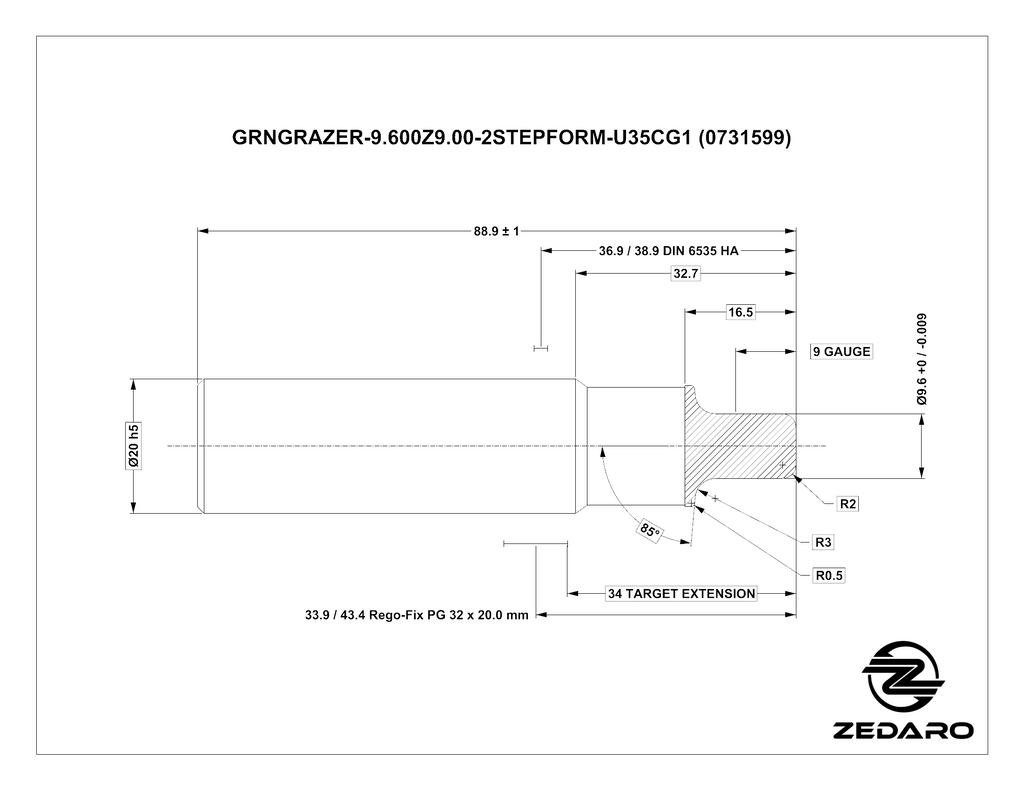

| Name | GRNGRAZER-9.600Z9.00-2STEPFORM-U35CG1 | |
| EDP # | 0731599 | |
| Material | Wrought Aluminum | Application | Finish 3D Milling <20k RPM (Grazer) |
| Form | Contour / Profile Tool | |
| Gauge Diameter | 0.3780" | 9.600 mm |
| Gauge Distance (from tip) | 0.3543" | 9.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.6299" | 16.000 mm |
| Reach | 1.2205" | 31.000 mm |
| Minimum Extension | 1.3" | 33.0 mm |
| Maximum Extension | 2.3" | 58.9 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 3.5" | 89 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
