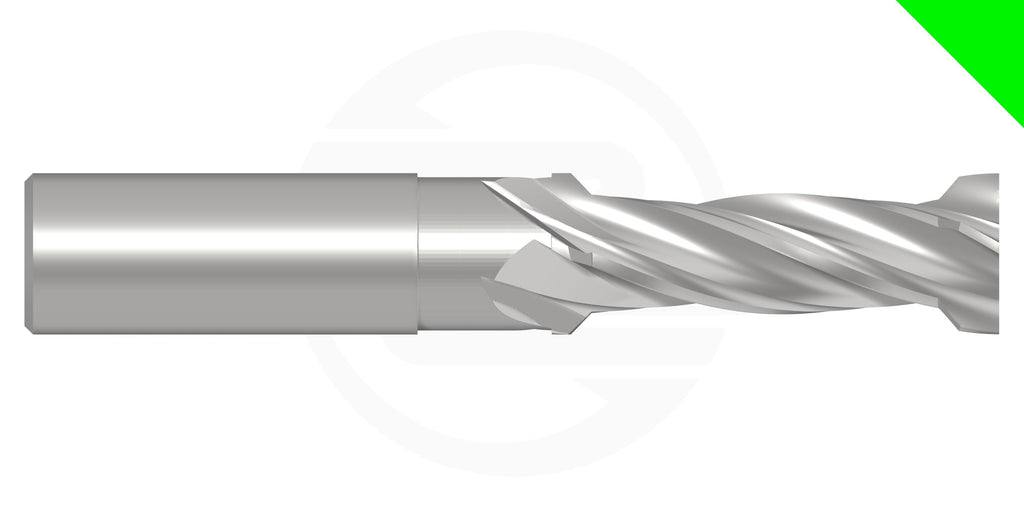

Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
| Tool Properties | ||
|---|---|---|

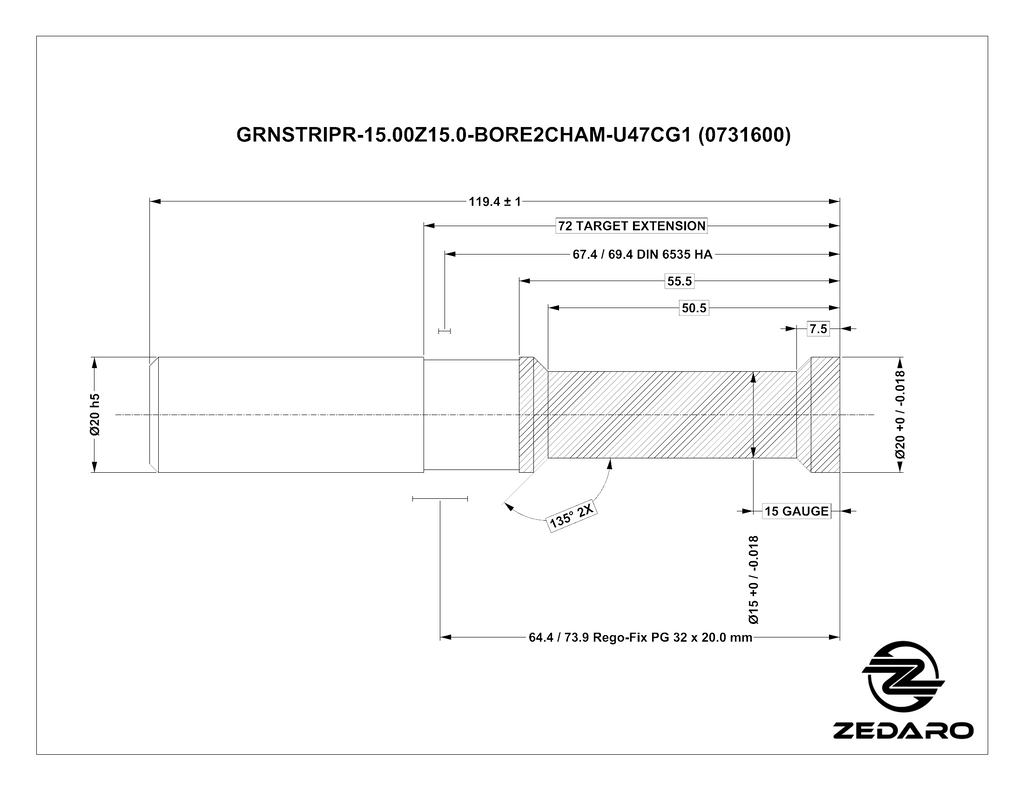

| Name | GRNSTRIPR-15.00Z15.0-BORE2CHAM-U47CG1 | |
| EDP # | 0731600 | |
| Material | Wrought Aluminum | Application | General Milling <20k RPM (Striper) |
| Form | Contour / Profile Tool | |
| Gauge Diameter | 0.5906" | 15.000 mm |
| Gauge Distance (from tip) | 0.5906" | 15.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 2.1654" | 55.000 mm |
| Reach | 2.1654" | 55.000 mm |
| Minimum Extension | 2.8" | 72.0 mm |
| Maximum Extension | 3.5" | 89.4 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.7" | 120 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h7 | |
