Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).

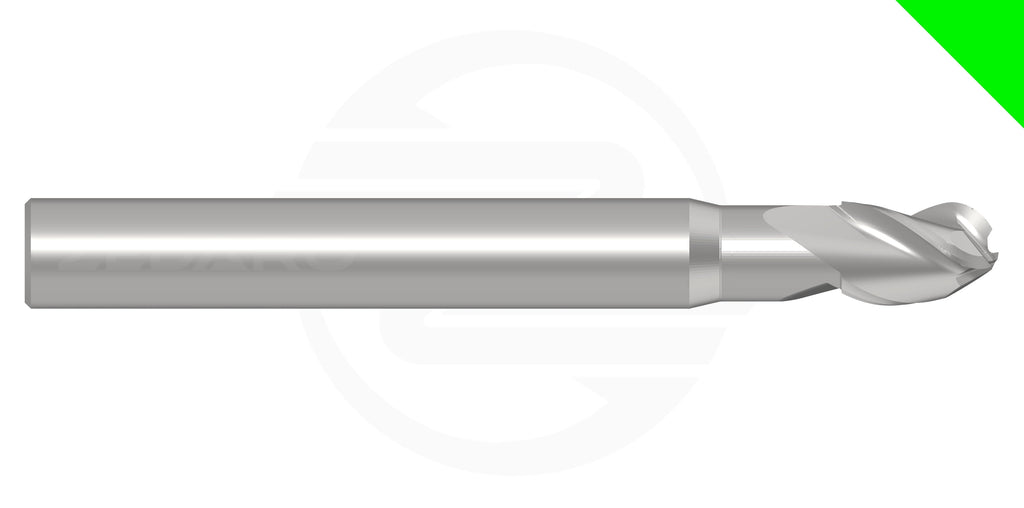

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|
| Name | GRNSTRIPR-6.000R3.00-16.0FAL17.8-G22CG1 | |
| EDP # | 0745899 | |
| Material | Wrought Aluminum | Application | General Milling <20k RPM (Striper) |
| Form | End Mill - Ball | |
| Cutting Diameter | 0.2362" | 6.000 mm |
| Corner Radius | 0.1181" | 3.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3543" | 9.000 mm |
| Reach | 0.6299" | 16.000 mm |
| Minimum Extension | 0.7" | 17.8 mm |
| Maximum Extension | 1.8" | 46.4 mm |
| Shank Diameter h5 | 0.2500" | 6.350 mm |
| Overall Length | 2.2" | 56 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
