Zedaro GRNSTRIPR-6.000R3.00-16.0FAL17.8-G22CG1 (0745899)
Zedaro GRNSTRIPR-6.000R3.00-16.0FAL17.8-G22CG1 (0745899)
Couldn't load pickup availability
Zedaro UID: 0745899
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNSTRIPR-6.000R3.00-16.0FAL17.8-G22CG1 | |
| EDP # | 0745899 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 27.0 g |
| Cutting Diameter | 0.2362" | 6.000 mm |
| Corner Radius | 0.1181" | 3.000 mm |
| Application | General Milling <20k RPM (Striper) | |
| Form | R-BALL | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.3543" | 9.000 mm |
| Overall Length | 2.2000" | 55.880 mm |
| Reach | 0.6299" | 16.000 mm |
| Minimum Extension | 0.7008" | 17.800 mm |
| Maximum Extension | 1.7008" | 43.200 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).

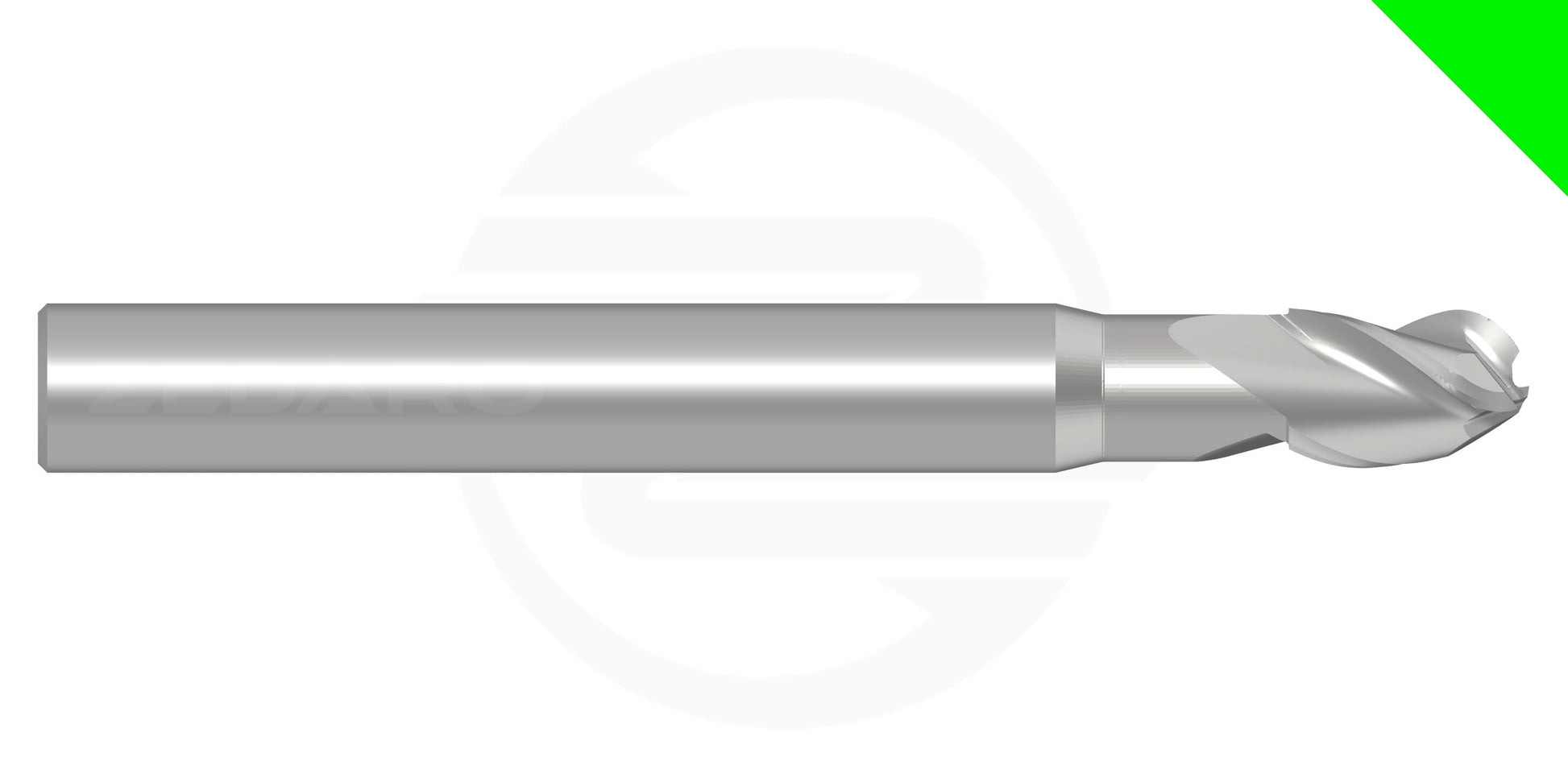

- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'FAL' refers to the bird species 'Falcon'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
