Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Pointer' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
Tool Properties | ||
---|---|---|

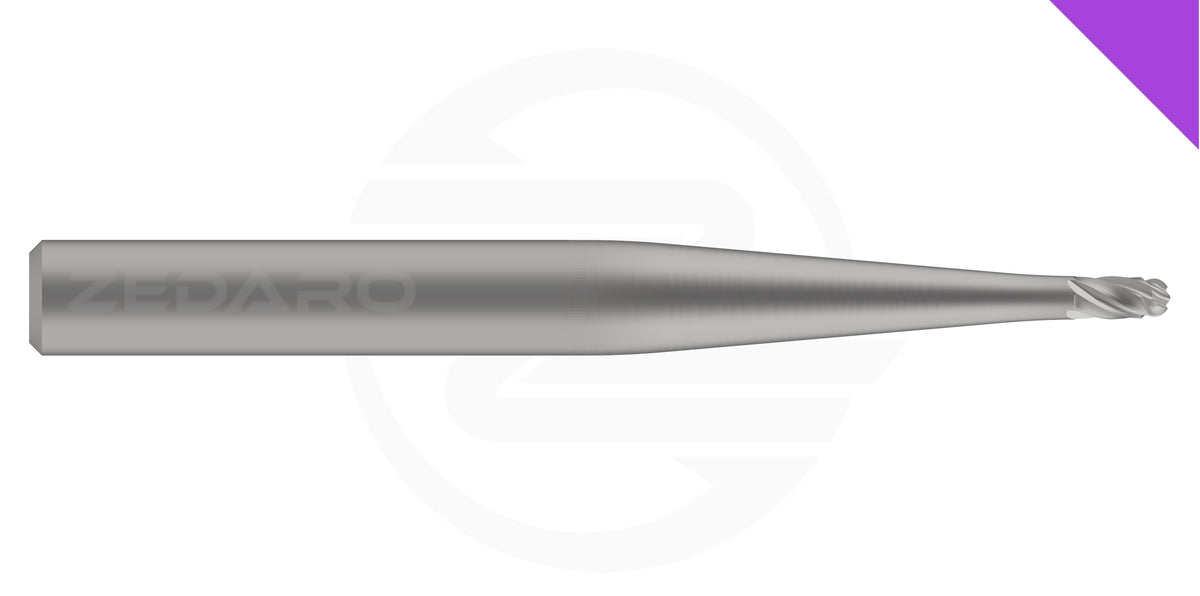

Name | PURPOINTR-2.381R1.19-5.24HAR33.0-G20AB1 (0211980) | |
EDP # | 0211980 | |
Material | Titanium | Application | Finish 3D Point Milling >20k RPM (Pointer) |
Form | End Mill - Bull / Rounded Corner | |
Cutting Diameter | 0.0937" | 2.381 mm |
Corner Radius | 0.0469" | 1.190 mm |
Taper per Side | 0.0° | |
Length of Cut | 0.2063" | 5.240 mm |
Reach | 0.2063" | 5.240 mm |
Minimum Extension | 1.3" | 33.0 mm |
Maximum Extension | 1.6" | 41.3 mm |
Shank Diameter h6 | 0.2500" | 6.350 mm |
Overall Length | 2.0" | 51 mm |
Cutting Edges | 4 |
