Zedaro GRNPOINTR-3.000R1.50-6.00ELA44.5-J35AB1 (0464665)

Sale price$133.13
In stock (10 units), ready to be shipped


The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)

The 'Pointer' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.

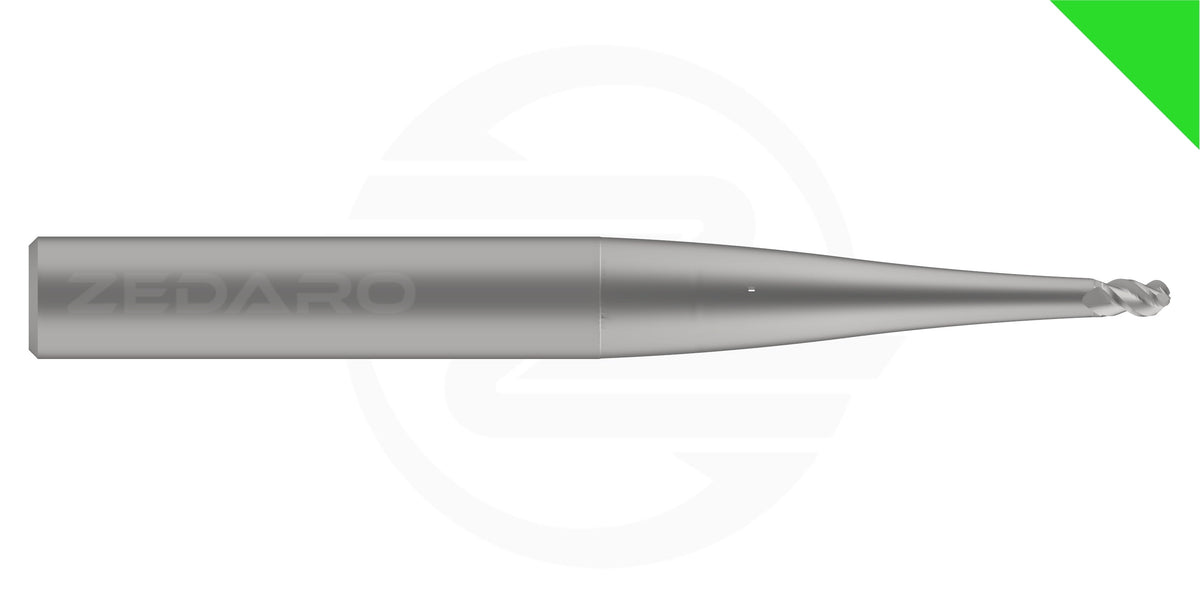

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

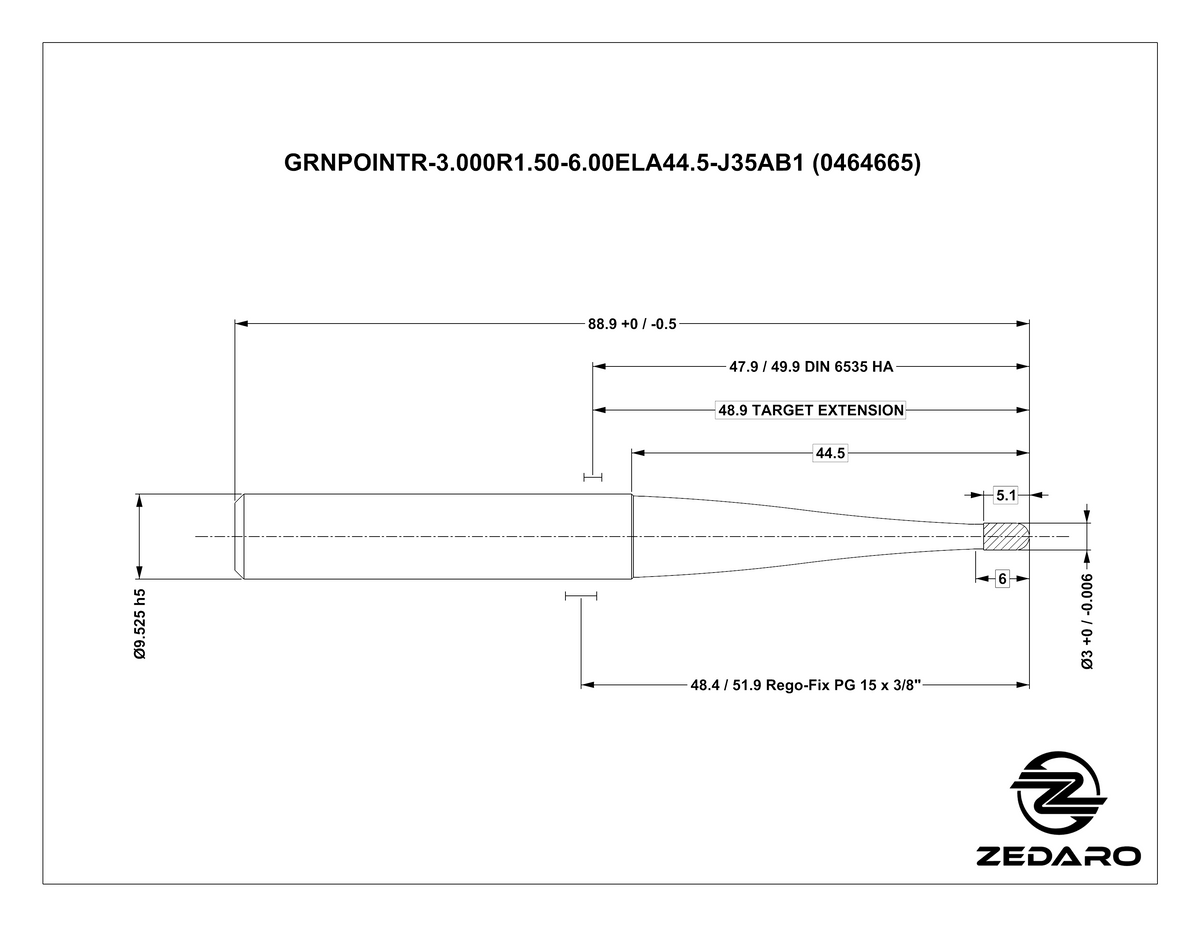

Download DXF Profile

Tool Properties
Name GRNPOINTR-3.000R1.50-6.00ELA44.5-J35AB1
EDP # 0464665
Material Wrought Aluminum
Application Finish 3D Point Milling >20k RPM (Pointer)
Form End Mill - Ball
Cutting Diameter 0.1181" 3.000 mm
Corner Radius 0.0591" 1.500 mm
Taper per Side 0.0°
Length of Cut 0.2008" 5.100 mm
Reach 0.2362" 6.000 mm
Minimum Extension 1.8" 44.5 mm
Maximum Extension 2.9" 74.6 mm
Shank Diameter h6 0.3750" 9.525 mm
Overall Length 3.5" 89 mm
Cutting Edges 3
