CERATIZIT ICR.H-SA.3,0.40°.Z3.HB.L TI1500 HPC SOLID CARBIDE END MILLING CUTTER 5278403400 (0642683)


Price:
Sale price$79.85
Stock:
Not in stock - Available to order

Description

ICR.H-SA.3,0.40°.Z3.HB.L TI1500 HPC SOLID CARBIDE END MILLING CUTTER

Mat No: 5278403400, Article No: 52784034

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT ICR.H-SA.3,0.40°.Z3.HB.L TI1500 HPC SOLID CARBIDE END MILLING CUTTER 5278403400 (0642683)
EDP # 0642683
Workpiece Material(s) All Materials (White)
Weight 0.7 oz 19.8 g

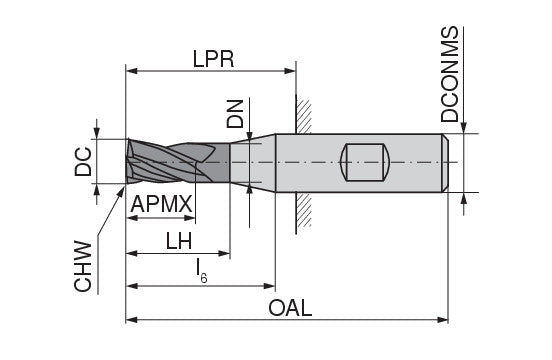

Cutting diameter DC/d1 e8 0.1181 inch 3 mm
Depth of cut maximum APMX/l2 0.315 inch 8 mm
Neck Diameter DN/d3 0.1142 inch 2.9 mm
Head length LH/l3 0.5512 inch 14 mm
L6 l6 0.7087 inch 18 mm
Protruding length LPR/l5 0.8268 inch 21 mm
Overall length OAL/l1 2.2441 inch 57 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Corner chamfer width CHW/K 0.0028 inch 0.07 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
,
