Description
AL.0750.3.R0030.HA.2250.5000 ZRN-U CARBIDE END MILL WITH CORNER RADIUS
Mat No: 14429482, Article No: 5900490330
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT AL.0750.3.R0030.HA.2250.5000 ZRN-U CARBIDE END MILL WITH CORNER RADIUS 14429482 (0642785) | |
| EDP # | 0642785 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 18.4 oz | 523.0 g |

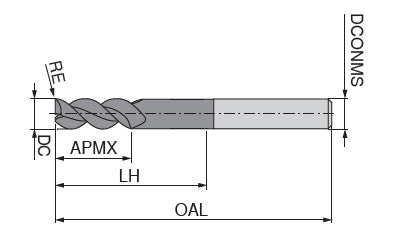

| Cutting diameter DC/d1 +0.000/-0.002 | 0.75 inch | 19.05 mm |
| Corner radius RE/r | 0.03 inch | 0.762 mm |
| Depth of cut maximum APMX/l2 | 2.25 inch | 57.15 mm |
| Overall length OAL/l1 | 5 inch | 127 mm |
| Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 | 0.75 inch | 19.05 mm |
| Peripheral effective cutting edge count ZEFP/Z | 3 | |
Application & Properties:
Suitable Materials:
