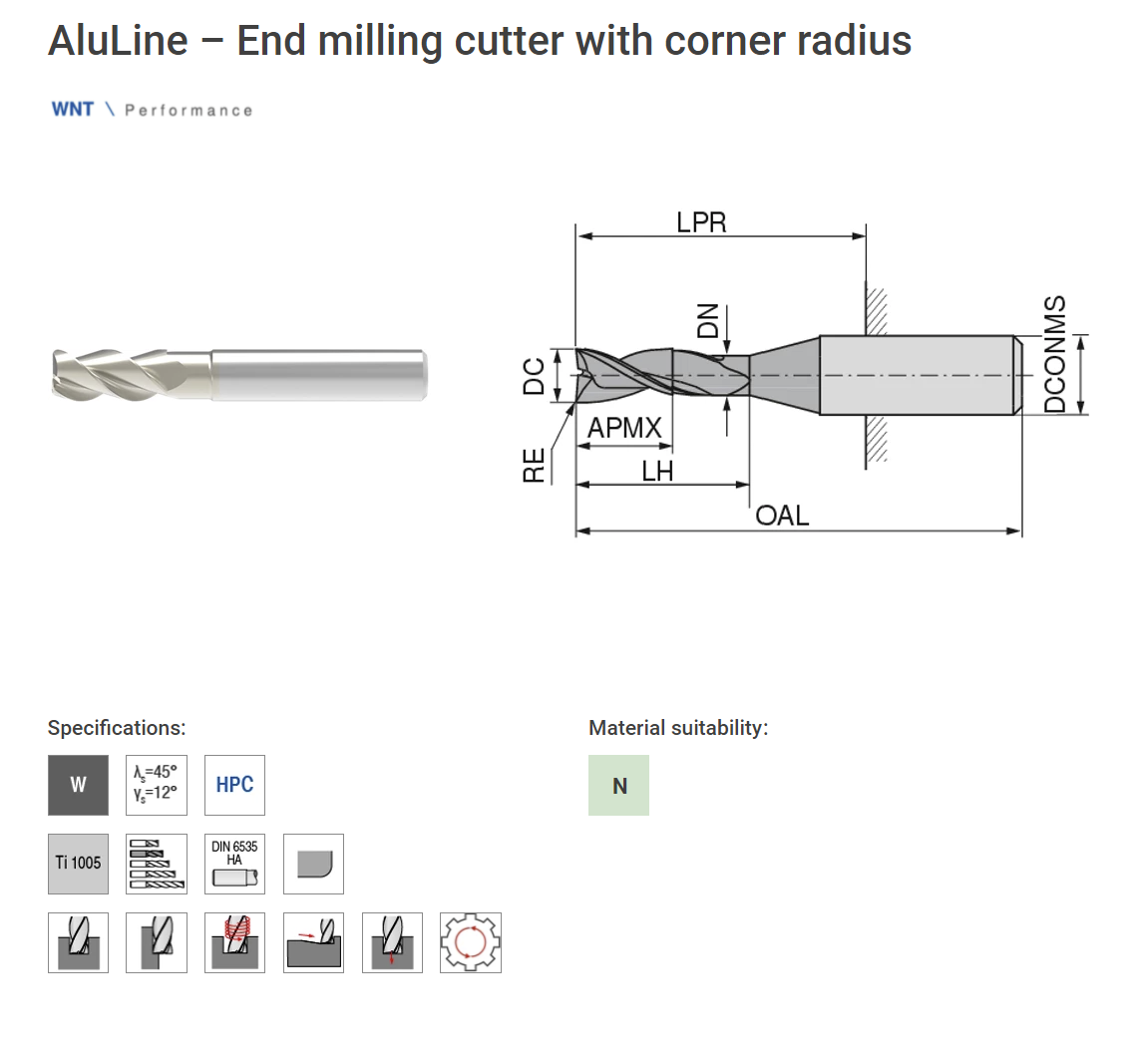

Ceratizit AluLine – End Milling Cutter with Corner Radius 5354416025 (0642814)
Ceratizit AluLine – End Milling Cutter with Corner Radius 5354416025 (0642814)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Shipping calculated at checkout.
Note that this item has been discontinued and will not be re-stocked.
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys.
The 'Grazer' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds up to 20K rpm and which can be used for almost anything.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
*** NOTE THAT THIS ITEM HAS BEEN DISCONTINUED ***
| Tool Properties | ||
|---|---|---|
| Name | GRNGRAZER-16.00R2.50-42.0CTZ44.0-R36_5354416025 (0642814) | |
| EDP # | 0642814 | |
| Material | Wrought Aluminum | |
| Application | Finish 3D Milling <20k RPM (Grazer) | |
| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.6299' | 16.000 mm |
| Corner Radius | 0.0984' | 2.500 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 1.4173' | 36.000 mm |
| Reach | 1.6535' | 42.000 mm |
| Minimum Extension | 1.7' | 44.0 mm |
| Maximum Extension | 2.7' | 67.4 mm |
| Shank Diameter h6 | 0.6299' | 16.000 mm |
| Overall Length | 3.6' | 92 mm |
| Cutting Edges | 3 | |
