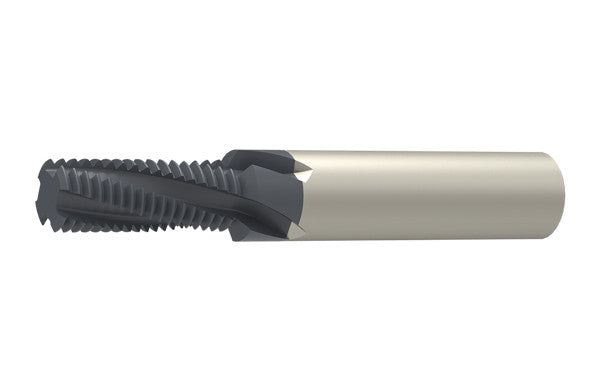

CERATIZIT SFSE.NPT1/4-18.HA.14.15,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER 5081901400 (0642938)


Price:
Sale price$358.39
Stock:
Not in stock - Available to order

Description

SFSE.NPT1/4-18.HA.14.15,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5081901400, Article No: 50819014

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT SFSE.NPT1/4-18.HA.14.15,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER 5081901400 (0642938)
EDP # 0642938
Workpiece Material(s) All Materials (White)
Weight 6.1 oz 173.9 g
Cutting diameter DC/d1 0.3976 inch 10.1 mm
Thread NPT 1/4-18
Thread pitch TP/p 0.0556 inch 1.411 mm
Threads per inch TPI/p 18
Depth of cut maximum APMX/l2 0.5906 inch 15 mm
Shank length LS/l3 min. 1.7717 inch 45 mm
Overall length OAL/l1 3.5433 inch 90 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
,
