Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys.
The 'Drifter' line is for T-slotting; generating lateral slots/grooves in faces using the tool flank.
'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
| Tool Properties | ||
|---|---|---|

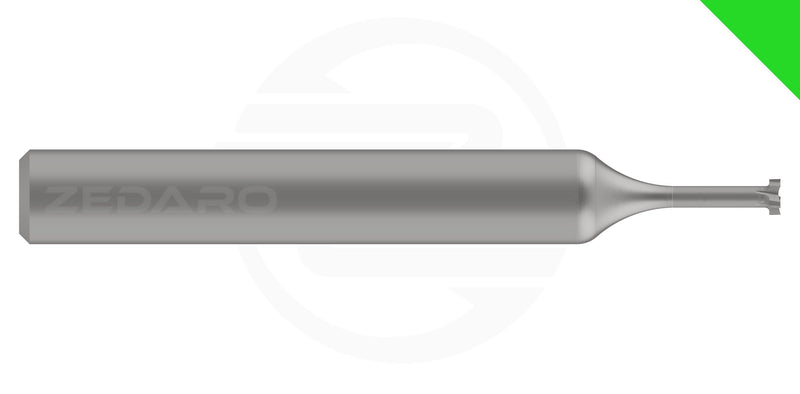

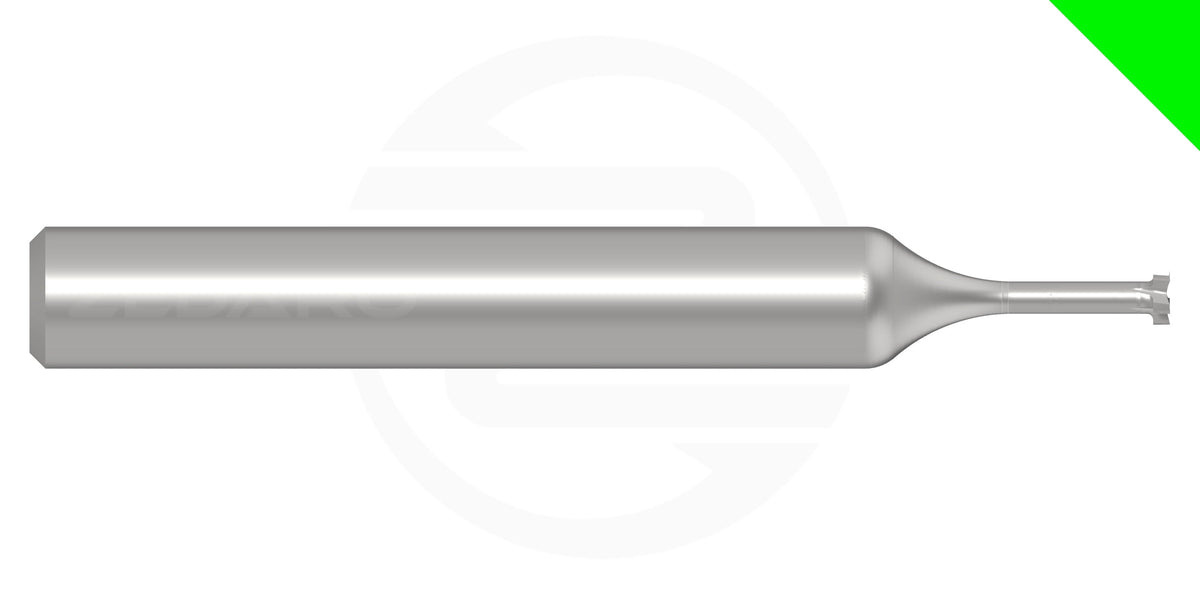

| Name | GRNDRIFTR-2.500S0.76-0643317-G20AB1 (0643317) | |
| EDP # | 0643317 | |
| Material | Wrought Aluminum | Application | General T-Slot Milling (Drifter) |
| Form | Slot Mill | |
| Cutting Diameter | 0.0984" | 2.500 mm |
| Slot Thickness | 0.0299" | 0.760 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.0299" | 0.760 mm |
| Reach | 0.5354" | 13.600 mm |
| Minimum Extension | 0.6" | 15.0 mm |
| Maximum Extension | NaN" | NaN mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 5 | |
