Description
Ceratizit Article Number: 5900350025
Ceratizit Material Number: 12185471
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3D0220-05000.12500.R02.A00060.HA.B270 End Milling Cutter 5900350025 | |
| EDP # | 0643514 | |
| Workpiece Material(s) | Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 140 g |

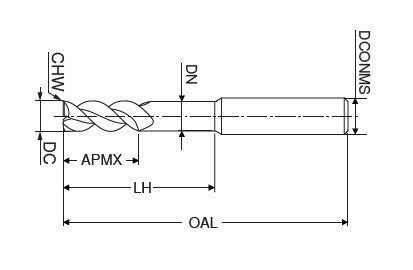

| Cutting diameter / DC +0.000/-0.002 | 0.5000" | 12.700 mm |
| Depth of cut maximum / APMX | 1.2500" | 31.750 mm |
| Neck Diameter / DN | 0.4800" | 12.192 mm |
| Head length / LH | 1.6250" | 41.275 mm |
| Protruding length / LPR | 1.7283" | 43.900 mm |
| Overall length / OAL | 3.5000" | 88.900 mm |
| Mounting spigot diameter / DCONMS -0.0001 / -0.0004 | 0.5000" | 12.700 mm |
| Corner chamfer width / CHW | 0.0060" | 0.152 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Coating name / Grade (Ceratizit) / COATN | blank | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
