Description
The 'Grey' line of tooling is designed specifically for cutting hardened/tool steels.
The 'Glider' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds greater than 20K rpm and which can be used for almost anything.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

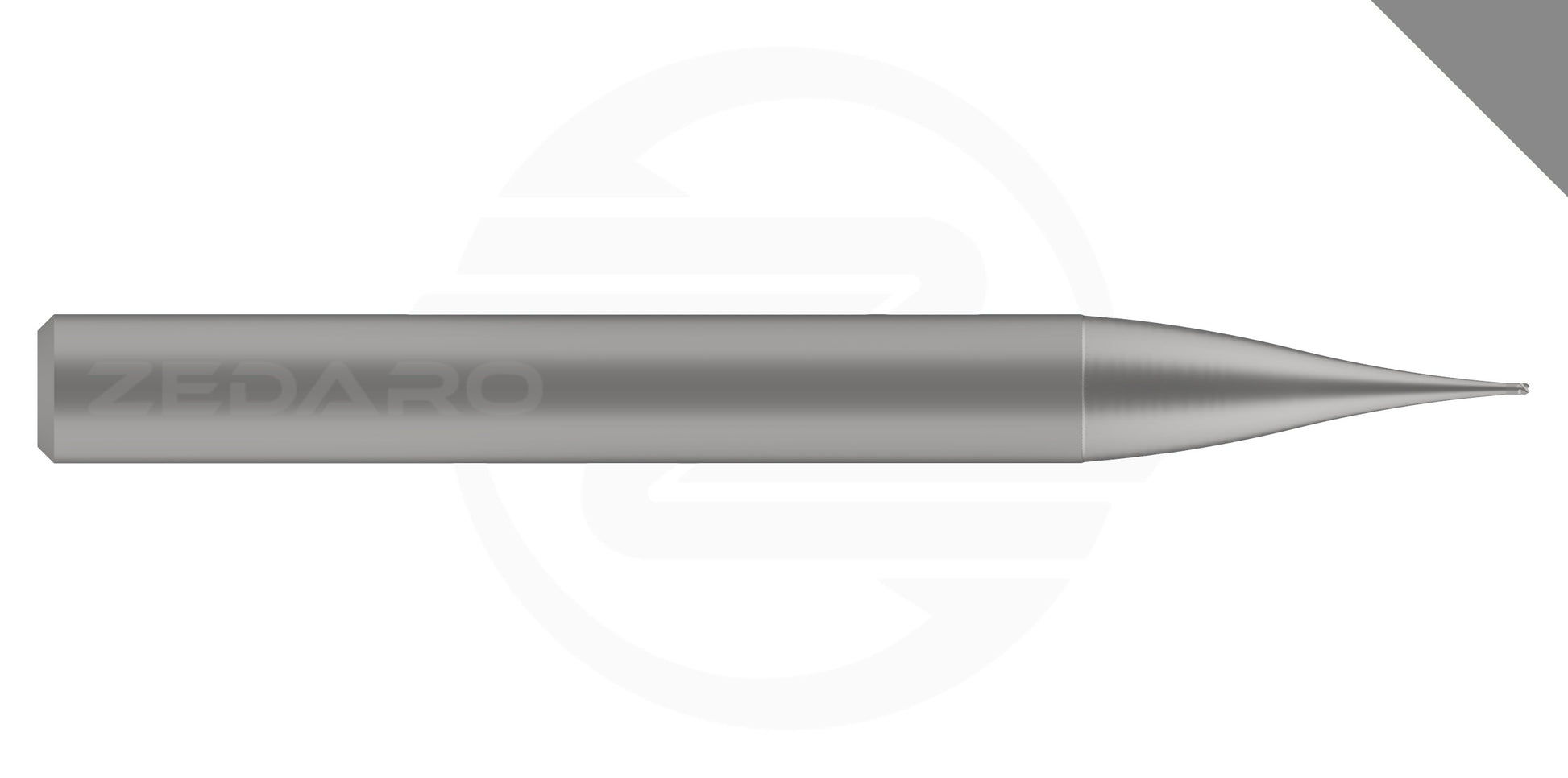

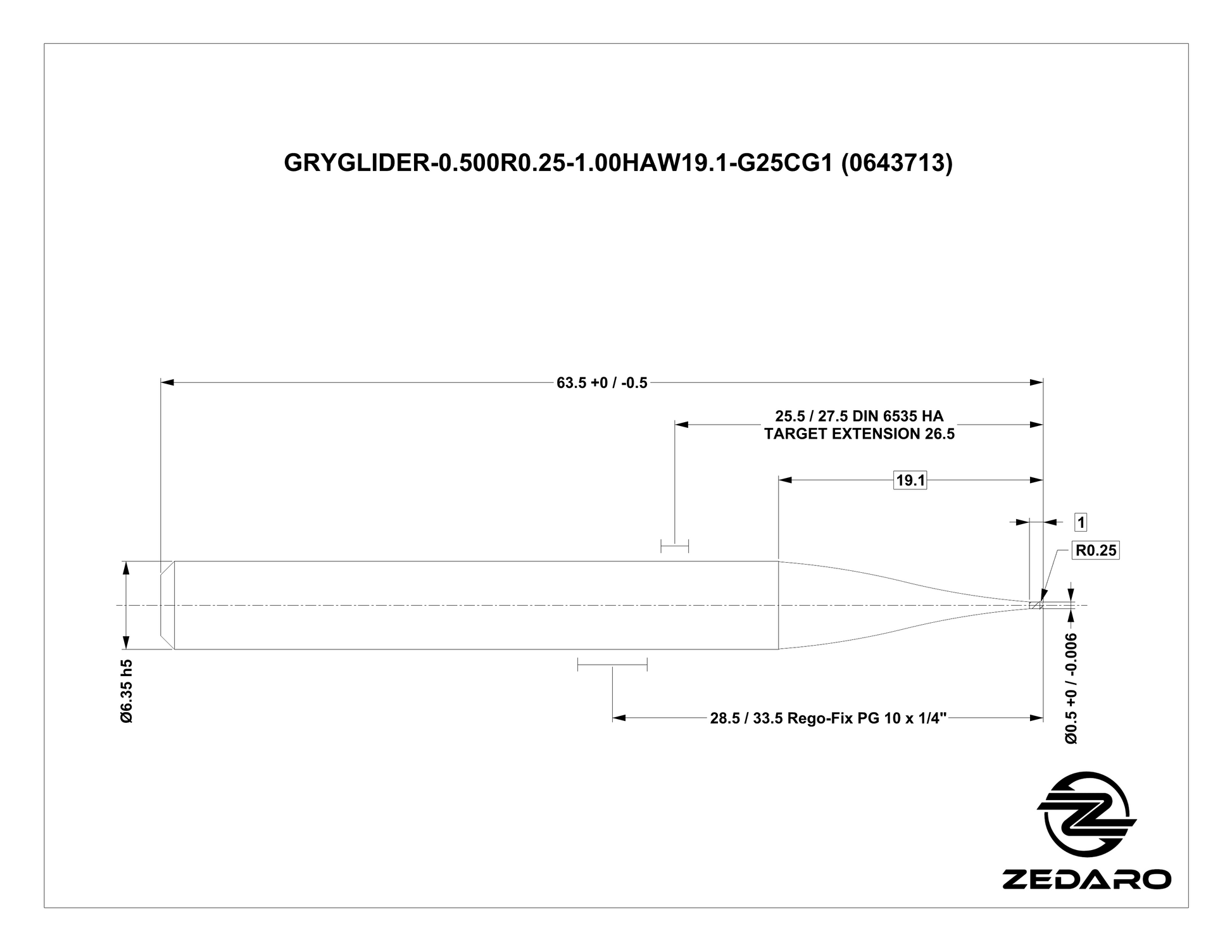

| Name | GRYGLIDER-0.500R0.25-1.00HAW19.1-G25CG1 | |
| EDP # | 0643713 | |
| Material | Tool Steel, Hardened Steel | Application | Finish 3D Milling >20k RPM (Glider) |
| Form | End Mill - Ball | |
| Cutting Diameter | 0.0197" | 0.500 mm |
| Corner Radius | 0.0098" | 0.250 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.0197" | 0.500 mm |
| Reach | 0.0394" | 1.000 mm |
| Minimum Extension | 0.8" | 19.1 mm |
| Maximum Extension | 2.1" | 54.0 mm |
| Shank Diameter h5 | 0.2500" | 6.350 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h6 | |
