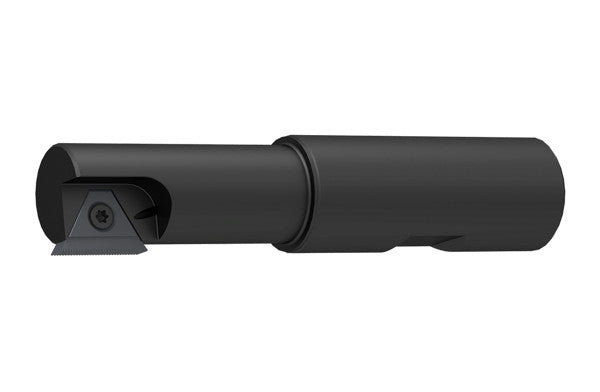

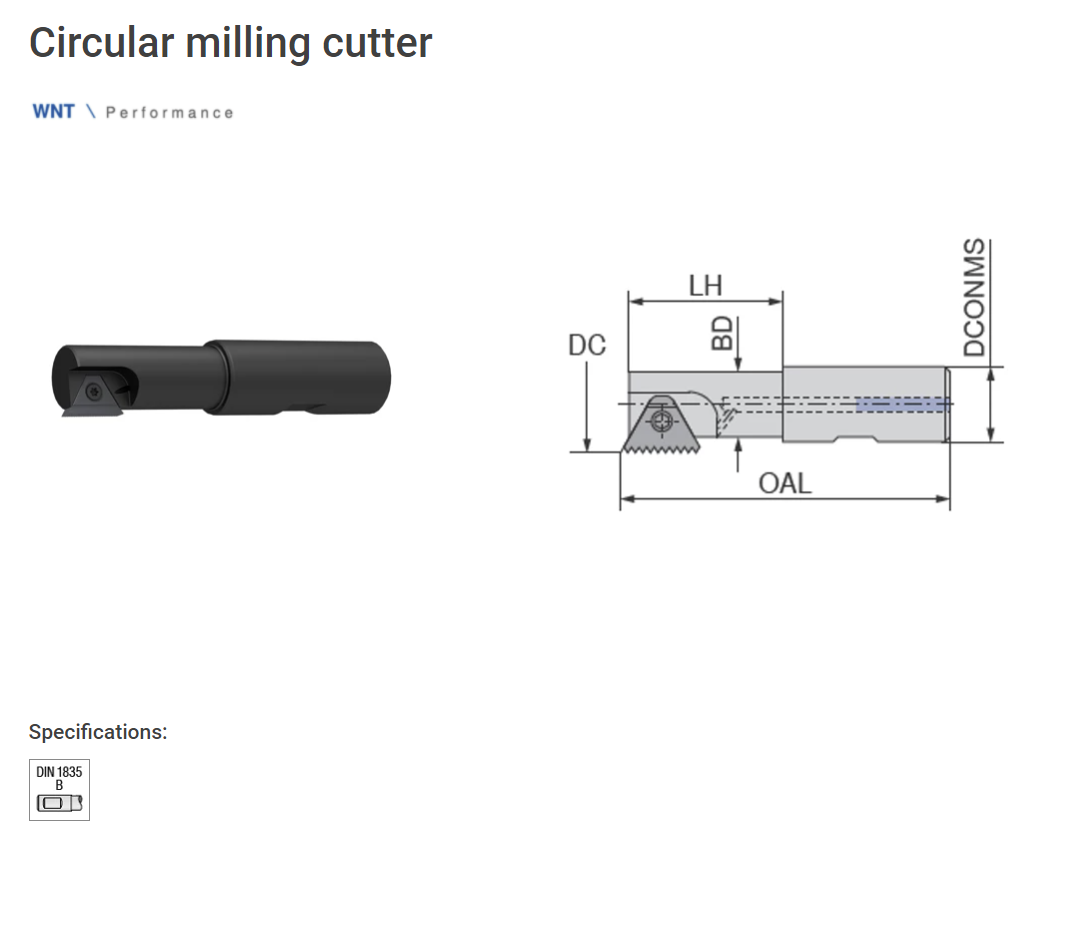

MWN.27.HB.32.58,0.IK CIRCULAR END MILLING CUTTER INSL refers to milling inserts Scope of supply: includes key
Mat No: 5084327300, Article No: 50843273
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT MWN.27.HB.32.58,0.IK CIRCULAR END MILLING CUTTER 5084327300 (0643876)|
|Weight||24.4 oz||692.1 g|

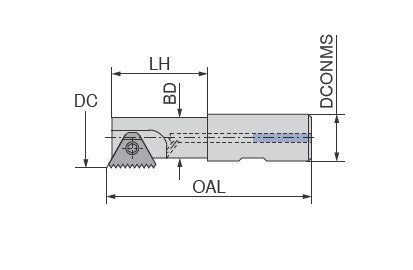

|Insert length INSL/Size||1.063 inch||27 mm|
|Cutting diameter DC/d1||1.4567 inch||37 mm|
|Head length LH/l3||2.2835 inch||58 mm|
|Mounting spigot diameter DCONMS/d2 h6||1.2598 inch||32 mm|
|Overall length OAL/l1||4.7244 inch||120 mm|
|Neck diameter (BD) BD/d3||1.2205 inch||31 mm|
|torque moment||9 Nm|
Application & Properties:
