GRYCHIRPR-20.00R0.00-40.0CTZ54.0-U40_5213320000 (0644208)


Price:
Sale price$374.61
Stock:
In stock (2 units), ready to be shipped

Description

H.SC.20,0.30°.Z10.HA.L TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYCHIRPR-20.00R0.00-40.0CTZ54.0-U40_5213320000 (0644208)
EDP # 0644208
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 16.5 oz 467 g

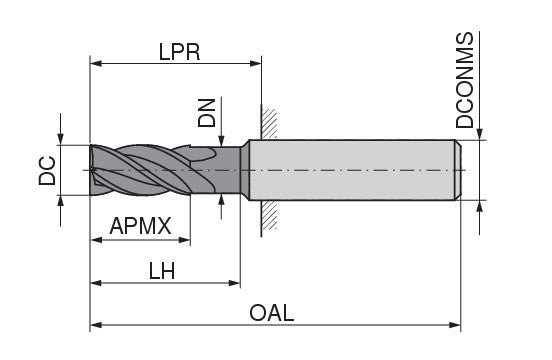

Cutting diameter DC/d1 e8 0.7874 inch 20 mm
Depth of cut maximum APMX/l2 1.5748 inch 40 mm
Protruding length LPR/l5 2.126 inch 54 mm
Overall length OAL/l1 4.0945 inch 104 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Peripheral effective cutting edge count ZEFP/Z 10

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
