GRYCHIRPR-3.000R0.00-12.0CTZ22.0-F22_5213303000 (0644209)


Price:
Sale price$45.33
Stock:
In stock (2 units), ready to be shipped

Description

H.SC.3,0.30°.Z4.HA.L TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

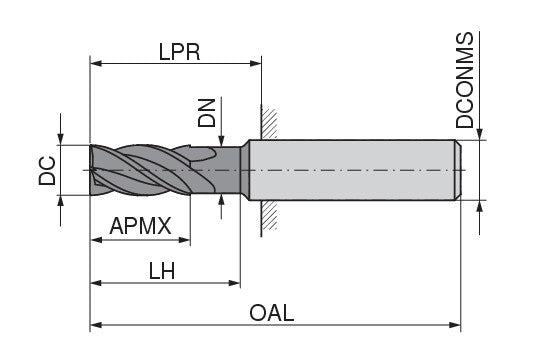

Name GRYCHIRPR-3.000R0.00-12.0CTZ22.0-F22_5213303000 (0644209)
EDP # 0644209
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.8 oz 22 g
Cutting diameter DC/d1 e8 0.1181 inch 3 mm
Depth of cut maximum APMX/l2 0.4724 inch 12 mm
Protruding length LPR/l5 0.8661 inch 22 mm
Overall length OAL/l1 2.2835 inch 58 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
