GRYTHREDR-4.600E1.00-14.0CTZ44.0-I23_50840060 (0644237)


Price:
Sale price$165.01
Stock:
In stock (3 units), ready to be shipped

Description

The 'Grey' line of tooling is designed specifically for cutting hardened/tool steels.
Nominal thread diameter: M6,nominal thread diameter M7,

The 'Threader' line is for thread milling.

'E' form tools are multi-point thread mills with a fixed pitch.

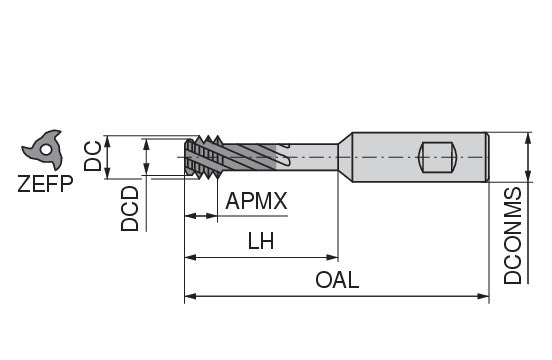

Tool Properties
Name GRYTHREDR-4.600E1.00-14.0CTZ44.0-I23_50840060 (0644237)
EDP # 0644237
Material Tool Steel, Hardened Steel
Application General Thread Milling (Threader)
Form Multi-Point Thread Mill
Cutting Diameter 0.1811" 4.600 mm
Pitch 0.0394" 1.000 mm
Taper per Side 0.0°
Length of Cut 0.1575" 4.000 mm
Reach 0.5512" 14.000 mm
Minimum Extension 1.7" 44.0 mm
Maximum Extension 1.8" 46.4 mm
Shank Diameter h6 0.3150" 8.000 mm
Overall Length 2.25" 57 mm
Cutting Edges 4
