Description
Ceratizit Article Number: 54810014
Ceratizit Material Number: 5481001400
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 5482601400, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SGF.UNC1/4-20.HA.6.13.0.IR/IL TI500 MonoThread Thread Milling Cutter 54810014 | |
| EDP # | 0644372 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 22.0 g |
| Thread | UNC 1/4-20 | |
| Thread pitch / TP | 0.0500" | 1.270 mm |

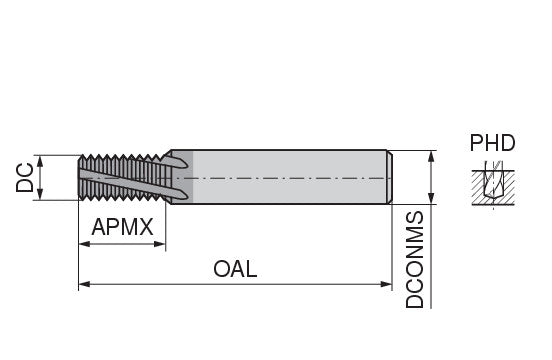

| Cutting diameter / DC | 0.1890" | 4.800 mm |
| Threads per inch / TPI | 20 1/" | |
| Depth of cut maximum / APMX | 0.5118" | 13.000 mm |
| Overall length / OAL | 2.1654" | 55.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.2362" | 6.000 mm |
| Peripheral effective cutting edge count / ZEFP | 3 | |
| Premachined hole diameter / PHD | 0.2008" | 5.100 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
