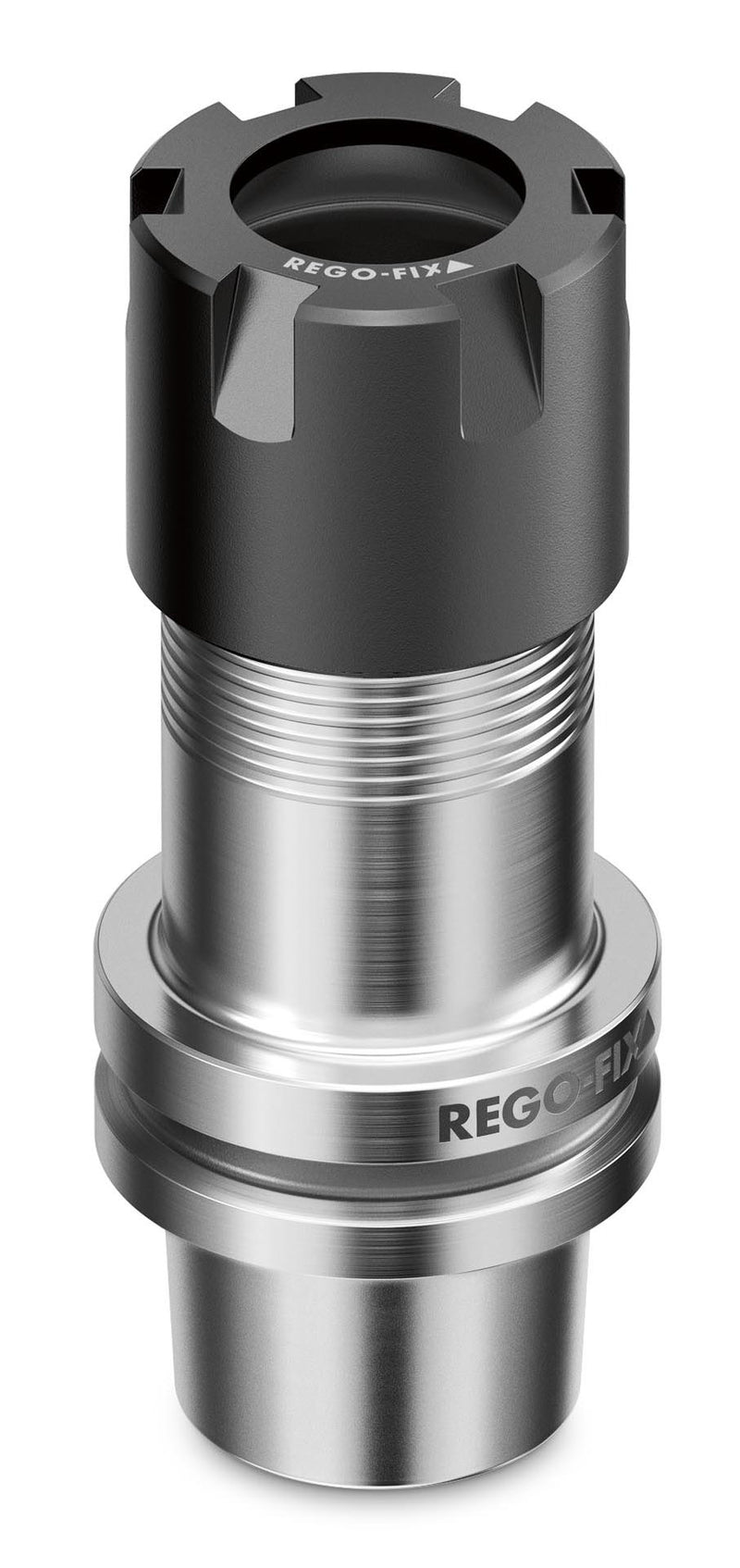

REGO-FIX HSK-E 32 / ERM 16 X 060 2532.11628 (0645972)


Price:
Sale price$364.00
Stock:
Not in stock - Available to order

Description

REGO-FIX HSK-E 32 / ER 16 M x 060mm Projection, 0.0001" TIR, Balanced to 60,000 RPM

Rego-Fix is a leading tool holder brand based in Switzerland since 1950.

The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for 'Hohl Shaft Kegel' - 'Hollow Shank Taper', and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.

The HSK-E form is designed for extreme speeds; with all sources of unbalance removed. This type still has a ring feature for automatic tool changing, but does not have any feature for integrating RFID chips

The ER tool holder system was invented by Fritz Weber, founder of Rego-Fix, and released in 1972. The ER-type system was originally used as a broom head to handle interface! The R in 'ER' stands for Rego-Fix, and represents the company's modification to common 'E' collet design of the early 20th century. Specifically, the modification was adding a groove to the collet which keeps it captive in the nut while installing/removing; eliminating the problem of collets getting stuck in the holders. Upon patent expiry the system was standardized in 1993 under DIN 6499 and is today the most recognizable and commonly used collet system worldwide.

The ERM (Rego-Fix Hi-Q) collet nut system uses minimal nut diameter, micro-thread, and standard (A-E M, E M) wrenching features. They are compatible with all ER family collets.

Specifications for HSK-E 32 / ERM 16 x 060 :
- Balanced to 60,000 RPM
- 0.0001" TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland

Product Video Link (new tab opens link - YouTube.com)

Please note that the actual item may not be/look exactly the same as shown in the item picture, and check all available info/links for reference or contact us for clarification.

Technical Reference Files:

DXF_ISO13399

PDF_ISO13399

STP_DIN4003

XML_DIN4000
