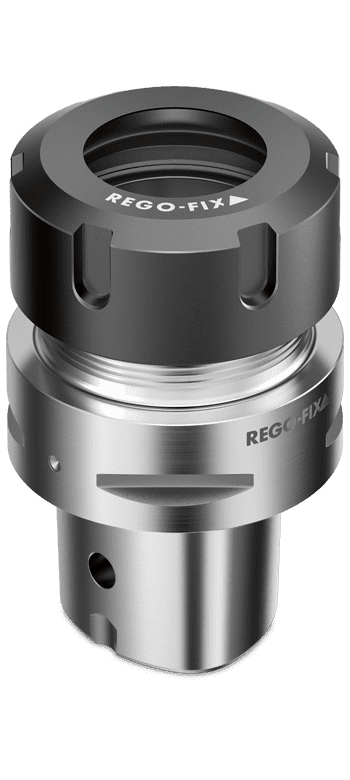

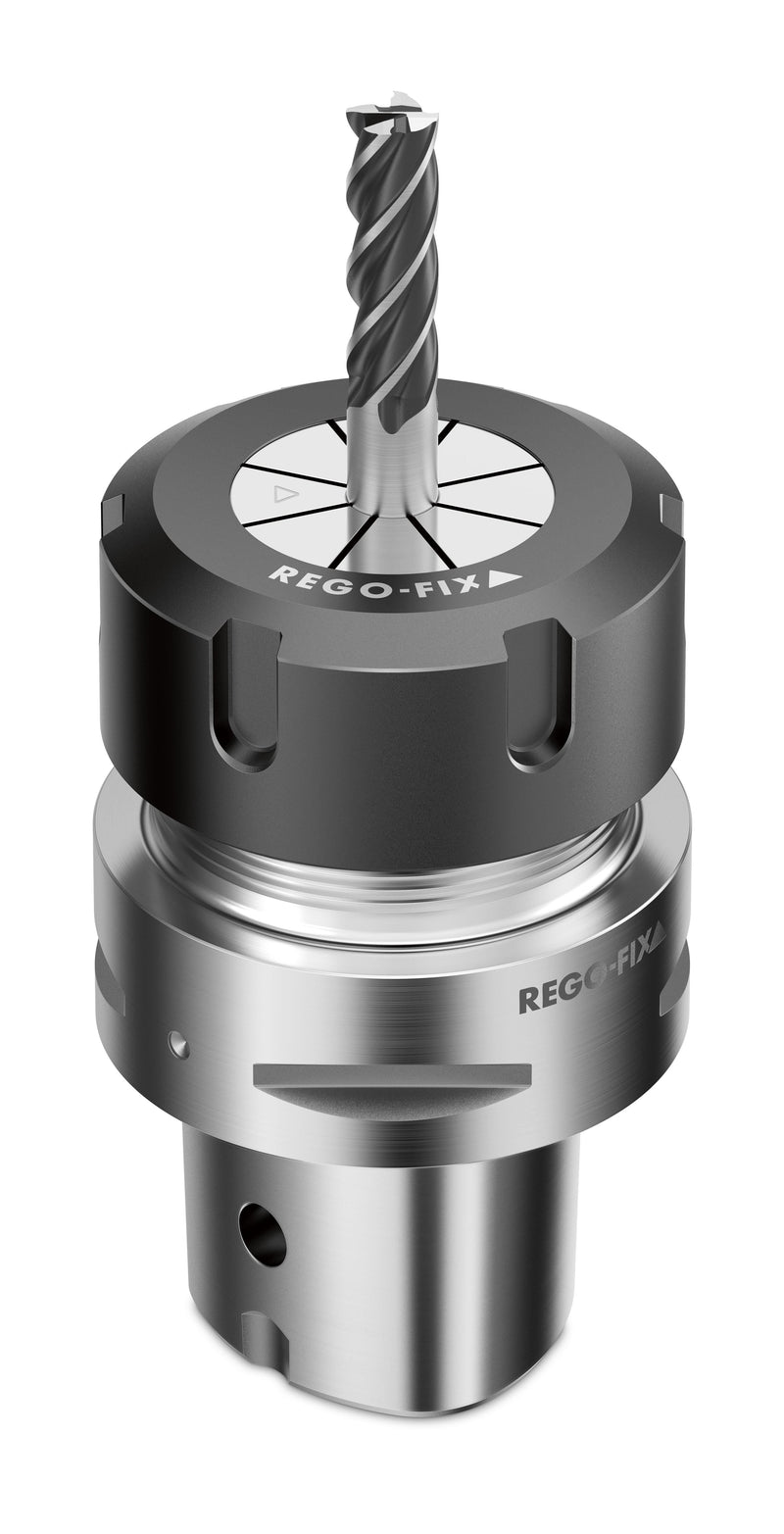

REGO-FIX C8 / ER 50 x 080mm Projection, Sandvik Licensed CAPTO, 0.0001" TIR, Balanced to 25,000 RPM
Rego-Fix is a leading tool holder brand based in Switzerland since 1950.
The Capto system was invented by Sandvik in 1990 and utilizes a high-precision tapered polygonal form. This provides highly accurate rotational indexing and zero-slip torque transmission; excellent for both milling and turning applications. Note that non-Capto 'PSC or PSK - Polygonal Shank Compatible' holders can be used with Capto interfaces.
Standard Capto interface.
The ER tool holder system was invented by Fritz Weber, founder of Rego-Fix, and released in 1972. The ER-type system was originally used as a broom head to handle interface! The R in 'ER' stands for Rego-Fix, and represents the company's modification to common 'E' collet design of the early 20th century. Specifically, the modification was adding a groove to the collet which keeps it captive in the nut while installing/removing; eliminating the problem of collets getting stuck in the holders. Upon patent expiry the system was standardized in 1993 under DIN 6499 and is today the most recognizable and commonly used collet system worldwide.
The classic ER interface, tried and true.
Specifications for C8 / ER 50 x 080 :
- Balanced to 25,000 RPM
- 0.0001" TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Please note that the actual item may not be/look exactly the same as shown in the item picture, and check all available info/links for reference or contact us for clarification.
