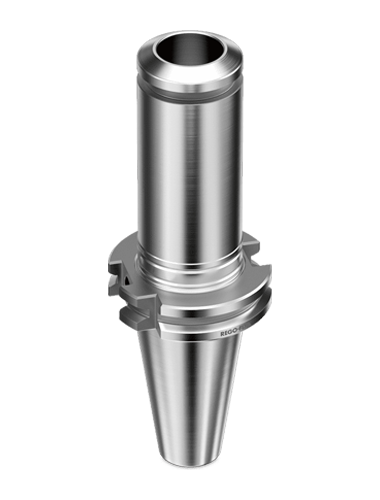

Rego-Fix SK+ 40 / PG 10 x 80mm H Tool Holder 4240.71046 (0646288)

Sale price$679.00
Not in stock - Available to order


OEM SKU: 4240.71046

Rego-Fix is a leading tool holder brand based in Switzerland since 1950.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name Rego-Fix SK+ 40 / PG 10 x 80mm H Tool Holder 4240.71046
EDP # 0646288
Weight (1 pc.) 32.0 oz 907 g
Projection 3.1500" 80.000 mm
Nose Diameter 0.6300" 16.000 mm
Total Indicated Runout (TIR) 0.0001" 0.003 mm
Coolant-thru Capable Yes
Maximum RPM 25000

Product Features:

- Manufactured in Switzerland

- Total system TIR 0.0003"

- BIG-PLUS Certified

Technical Reference Files:

PDF Drawing

DXF Profile


Background Information:

The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.

The SK+ modification follows the Big Plus System specifications under license from BIG Daishowa, namely an AT1 quality cone and double contact.

The classic PG collet design, perfect for all standard machining applications, guaranteed for 5 years / 20,000 clamping cycles with proper procedure and h6 tool shanks.

Company History:

The beginning of what has become Rego-Fix was Fritz Weber founding "Fritz Weber Feinmechanik und Werkzeugbau" in Reigoldswil, Switzerland in 1950. His first serially manufactured product was a broomholder; a humble origin that has shaped the company's history for many years. By 1955 the company employed 15 people and began to venture into toolmaking, and by 1970 also had become a successful brand in cheese cutting, as well as yoghurt and gas bottling machines. In 1972 Rego-Fix invented the ER machine collet system, the innovation which would make the company world-renown. Interestingly, the mechanism for the ER collet system had been used in broom handles from the beginning, but the application to machine tools was much more important. Tool holding technology was continuously developed by the company since that moment, and has produced an additional revolutionary system, PowRgrip. Today Rego-Fix is recognized at the top level of premium brands in the machining industry.
