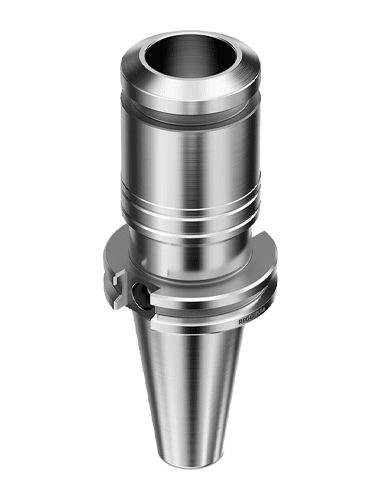

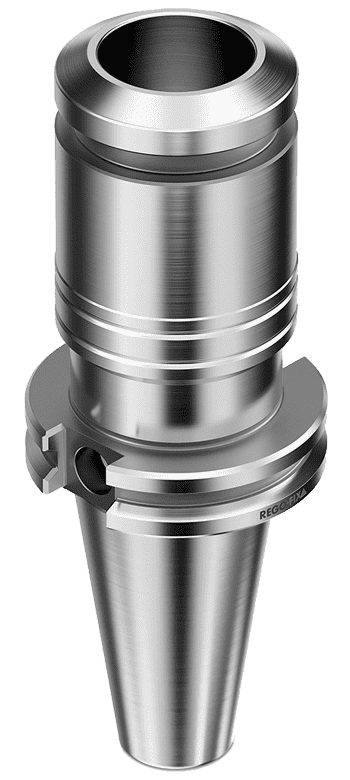

REGO-FIX CAT-B 40 / PG 15 x 3.15” H Projection, 0.0001" TIR, Balanced to 25,000 RPM
Rego-Fix is a leading tool holder brand based in Switzerland since 1950.
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
The CAT-B modification adds flange/face contact for improved rigidity and accuracy and provides coolant-through-tool capabilities with a port drilled into the flange.
The classic PG collet design, perfect for all standard machining applications, guaranteed for 5 years / 20,000 clamping cycles with proper procedure and h6 tool shanks.
Specifications for CAT-B 40 / PG 15 x 3.15” H :
- Manufactured in Switzerland
- Balanced to 25,000 RPM
- Total system runout 0.0003" TIR
- High Vibration Damping
Please note that the actual item may not be/look exactly the same as shown in the item picture, and check all available info/links for reference or contact us for clarification.
