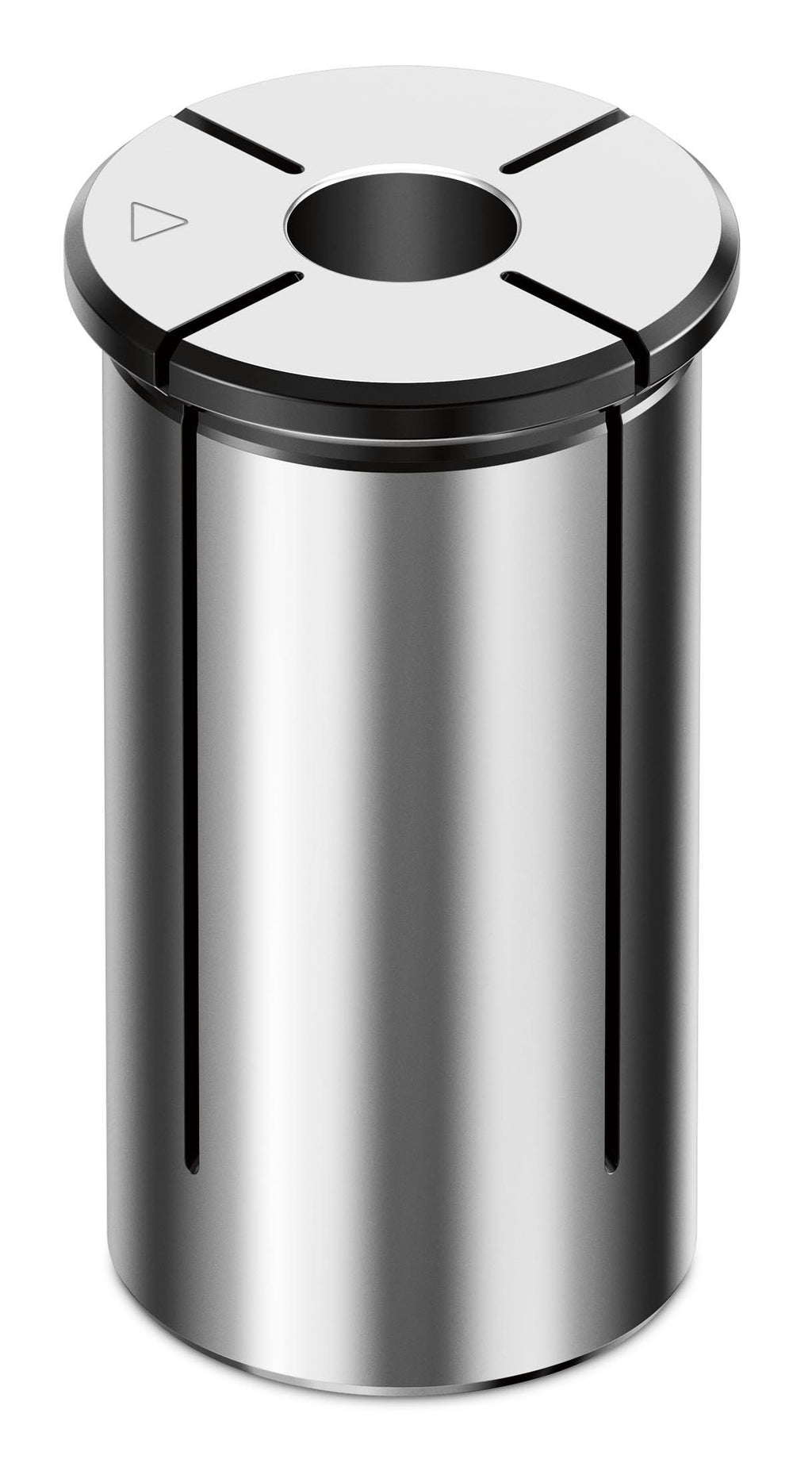

Rego-Fix HS 20-CF Ø 4.0 mm Reduction Sleev 1920.04002 (0647608)

Sale price$167.00
Not in stock - Available to order


OEM SKU: 1920.04002

Rego-Fix is a leading tool holder brand based in Switzerland since 1950.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name Rego-Fix HS 20-CF Ø 4.0 mm Reduction Sleev 1920.04002
EDP # 0647608
Weight (1 pc.) 4.0 oz 110 g
Total Indicated Runout (TIR) 0.0001" 0.003 mm
Coolant-thru Capable Yes

Product Features:

- Hydraulic Sleeve

- Manufactured in Switzerland

Technical Reference Files:

PDF Drawing

DXF Profile


Background Information:

Runout TIR <3 μm, for clamping different tool shank diameters in hydraulic chucks with h6 tolerance while including coolant flush grooves around the tool shank. Suited for internal cooling because of their metal-to-metal seal for cutting tools with internal coolant channels. They are specially suited for high-precision clamping of cylindrical tool shanks per DIN 6535 form HA, HB and HE, as well as tool shanks per DIN 1835 form B, C, D and E.

Company History:

The beginning of what has become Rego-Fix was Fritz Weber founding "Fritz Weber Feinmechanik und Werkzeugbau" in Reigoldswil, Switzerland in 1950. His first serially manufactured product was a broomholder; a humble origin that has shaped the company's history for many years. By 1955 the company employed 15 people and began to venture into toolmaking, and by 1970 also had become a successful brand in cheese cutting, as well as yoghurt and gas bottling machines. In 1972 Rego-Fix invented the ER machine collet system, the innovation which would make the company world-renown. Interestingly, the mechanism for the ER collet system had been used in broom handles from the beginning, but the application to machine tools was much more important. Tool holding technology was continuously developed by the company since that moment, and has produced an additional revolutionary system, PowRgrip. Today Rego-Fix is recognized at the top level of premium brands in the machining industry.
