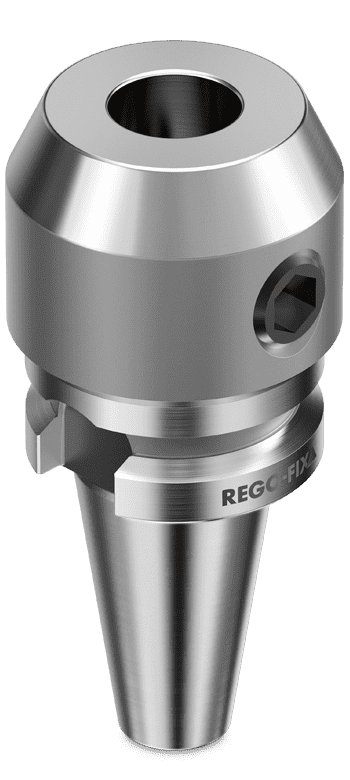

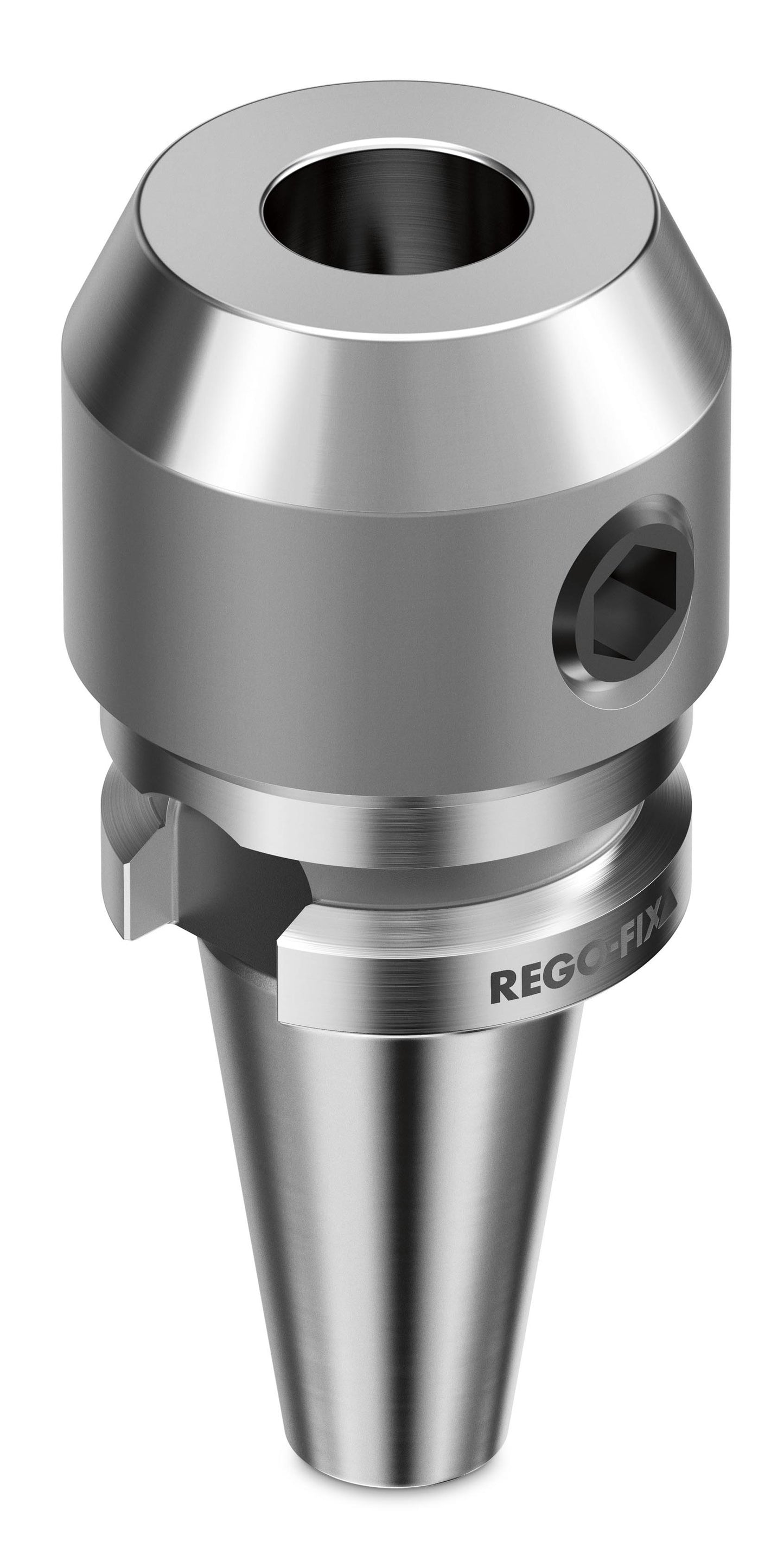

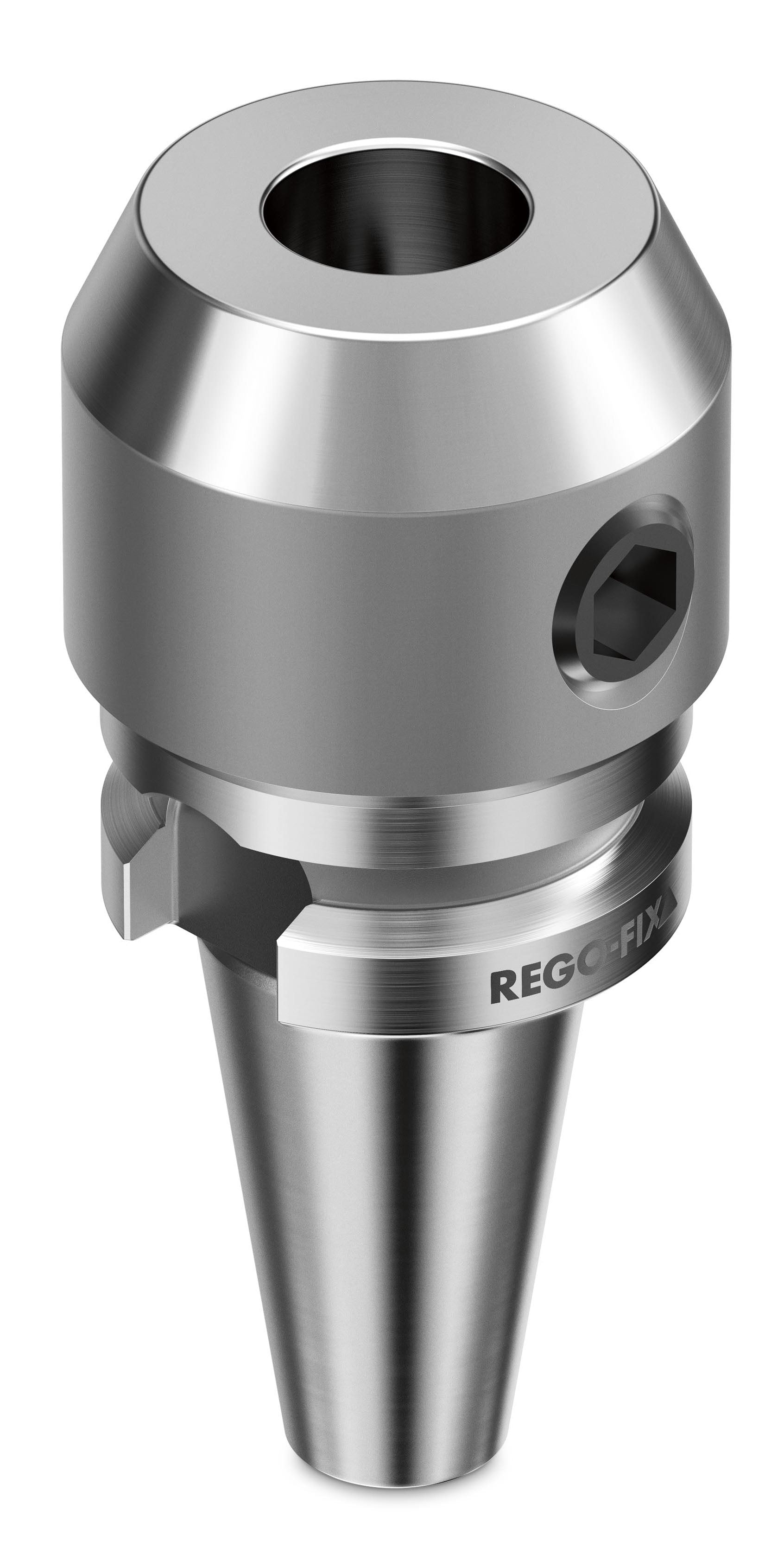

Rego-Fix BT 40 / WD 25 x 090 Tool Holder 2140.32550 (0648062)

Sale price$214.00
Not in stock - Available to order


OEM SKU: 2140.32550

Rego-Fix is a leading tool holder brand based in Switzerland since 1950.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name Rego-Fix BT 40 / WD 25 x 090 Tool Holder 2140.32550
EDP # 0648062
Weight (1 pc.) 80.0 oz 2272 g
Projection 3.5400" 90.000 mm
Nose Diameter 2.5600" 65.000 mm
Total Indicated Runout (TIR) 0.0001" 0.003 mm
Coolant-thru Capable NO

Product Features:

- Balanced by Design

- 0.0001" TIR

- Manufactured in Switzerland

Technical Reference Files:

PDF Drawing

DXF Profile


Background Information:

The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.

The Weldon interface utilizes a straight bore and one or more setscrews to grip the tool shank, and was invented circa 1918 by Carl A. Bergstrom in Cleveland, USA. Although seemingly crude and archaic, this style of tool holder interface often outperforms more modern systems when it comes to extremely heavy machining loads, and cannot be beat for simplicity.

Company History:

The beginning of what has become Rego-Fix was Fritz Weber founding "Fritz Weber Feinmechanik und Werkzeugbau" in Reigoldswil, Switzerland in 1950. His first serially manufactured product was a broomholder; a humble origin that has shaped the company's history for many years. By 1955 the company employed 15 people and began to venture into toolmaking, and by 1970 also had become a successful brand in cheese cutting, as well as yoghurt and gas bottling machines. In 1972 Rego-Fix invented the ER machine collet system, the innovation which would make the company world-renown. Interestingly, the mechanism for the ER collet system had been used in broom handles from the beginning, but the application to machine tools was much more important. Tool holding technology was continuously developed by the company since that moment, and has produced an additional revolutionary system, PowRgrip. Today Rego-Fix is recognized at the top level of premium brands in the machining industry.
