CERATIZIT UN.0063.4.HA.0188.0150.0188 ALTIN-U SOLID CARBIDE END MILLING CUTTER 12182333 (0648425)


Price:
Sale price$12.90
Stock:
Not in stock - Available to order

Description

UN.0063.4.HA.0188.0150.0188 ALTIN-U SOLID CARBIDE END MILLING CUTTER

Mat No: 12182333, Article No: 5907306330

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT UN.0063.4.HA.0188.0150.0188 ALTIN-U SOLID CARBIDE END MILLING CUTTER 12182333 (0648425)
EDP # 0648425
Workpiece Material(s) All Materials (White)
Weight 0.4 oz 10.0 g

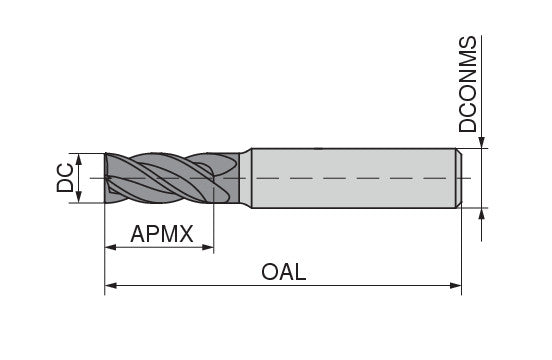

Peripheral effective cutting edge count ZEFP/Z 4
Cutting diameter DC/d1 0.0625 inch 1.5875 mm
Depth of cut maximum APMX/l2 0.1875 inch 4.7625 mm
Overall length OAL/l1 1.5 inch 38.1 mm
Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 0.125 inch 3.175 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
,
