Ceratizit 3DX644-03750.30000.R04.Z00000.HA.B270 End Milling Cutter 5907237580 (0648622)


Price:
Sale price$66.60
Stock:
Not in stock - Available to order

Description

Ceratizit Article Number: 5907237580

Ceratizit Material Number: 14432028

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit 3DX644-03750.30000.R04.Z00000.HA.B270 End Milling Cutter 5907237580
EDP # 0648622
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White)
Weight (1 pc.) 6.0 oz 158 g

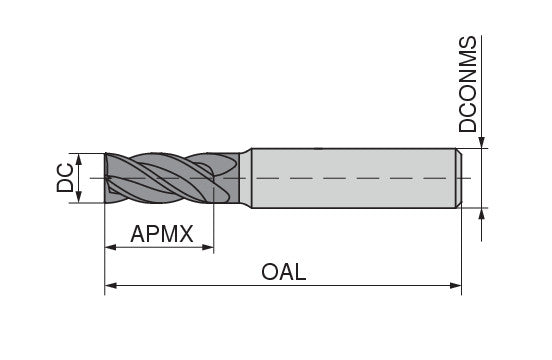

Cutting diameter / DC 0.3750" 9.525 mm
Depth of cut maximum / APMX 3.0000" 76.200 mm
Protruding length / LPR 4.4252" 112.400 mm
Overall length / OAL 6.0000" 152.400 mm
Mounting spigot diameter / DCONMS -0.0001 / -0.0004 0.3750" 9.525 mm
Peripheral effective cutting edge count / ZEFP 4
Coating name / Grade (Ceratizit) / COATN blank


Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
