Description
Ceratizit Article Number: 5907350020
Ceratizit Material Number: 14432065
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
Properties | ||
---|---|---|
Name | Ceratizit 3DX644-05000.10000.R04.Z00000.HA.X104 End Milling Cutter 5907350020 | |
EDP # | 0648884 | |
Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
Weight (1 pc.) | 4.0 oz | 100 g |

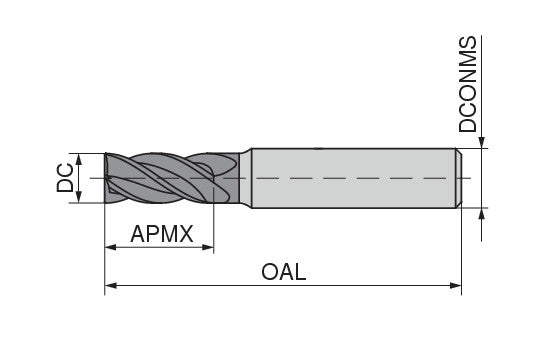

Cutting diameter / DC | 0.5000" | 12.700 mm |
Depth of cut maximum / APMX | 1.0000" | 25.400 mm |
Protruding length / LPR | 1.2350" | 31.369 mm |
Overall length / OAL | 3.0000" | 76.200 mm |
Mounting spigot diameter / DCONMS -0.0001 / -0.0004 | 0.5000" | 12.700 mm |
Peripheral effective cutting edge count / ZEFP | 4 | |
Coating name / Grade (Ceratizit) / COATN | AlTiN |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
