CERATIZIT UN.0750.4.HA.1000.0300.1000 ALTIN-U SOLID CARBIDE END MILLING CUTTER 14432223 (0648936)


Price:
Sale price$133.11
Stock:
Not in stock - Available to order

Description

UN.0750.4.HA.1000.0300.1000 ALTIN-U SOLID CARBIDE END MILLING CUTTER

Mat No: 14432223, Article No: 5907375013

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT UN.0750.4.HA.1000.0300.1000 ALTIN-U SOLID CARBIDE END MILLING CUTTER 14432223 (0648936)
EDP # 0648936
Workpiece Material(s) All Materials (White)
Weight 11.2 oz 316.7 g

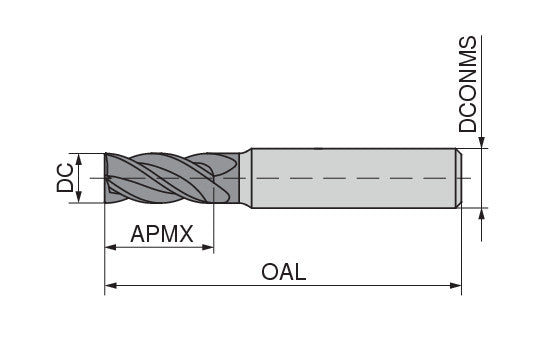

Cutting diameter DC/d1 0.75 inch 19.05 mm
Depth of cut maximum APMX/l2 1 inch 25.4 mm
Overall length OAL/l1 3 inch 76.2 mm
Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 0.75 inch 19.05 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
,
