Ceratizit 3DX644-03750.17500.R04.Z00000.HA.B270 End Milling Cutter 5907237547 (0649026)


Price:
Sale price$45.72
Stock:
Not in stock - Available to order

Description

Ceratizit Article Number: 5907237547

Ceratizit Material Number: 14432010

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit 3DX644-03750.17500.R04.Z00000.HA.B270 End Milling Cutter 5907237547
EDP # 0649026
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White)
Weight (1 pc.) 4.0 oz 105 g

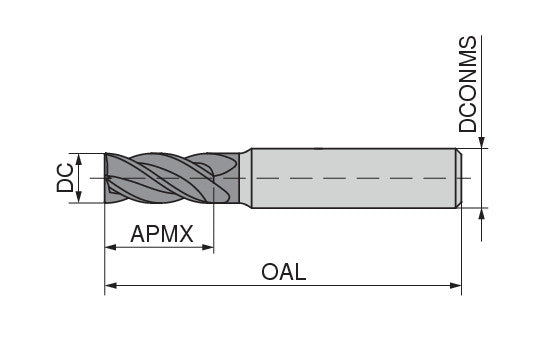

Cutting diameter / DC 0.3750" 9.525 mm
Depth of cut maximum / APMX 1.7500" 44.450 mm
Protruding length / LPR 2.4252" 61.600 mm
Overall length / OAL 4.0000" 101.600 mm
Mounting spigot diameter / DCONMS -0.0001 / -0.0004 0.3750" 9.525 mm
Peripheral effective cutting edge count / ZEFP 4
Coating name / Grade (Ceratizit) / COATN blank


Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
