CERATIZIT UN.0375.4.HA.0625.0200.0625 ALTIN-U SOLID CARBIDE END MILLING CUTTER 14431919 (0649122)


Price:
Sale price$28.81
Stock:
Not in stock - Available to order

Description

UN.0375.4.HA.0625.0200.0625 ALTIN-U SOLID CARBIDE END MILLING CUTTER

Mat No: 14431919, Article No: 5907337517

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT UN.0375.4.HA.0625.0200.0625 ALTIN-U SOLID CARBIDE END MILLING CUTTER 14431919 (0649122)
EDP # 0649122
Workpiece Material(s) All Materials (White)
Weight 1.9 oz 52.6 g

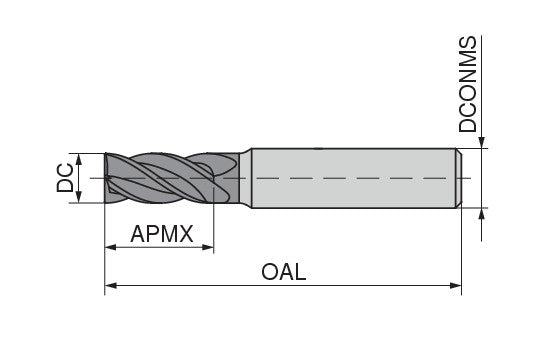

Cutting diameter DC/d1 0.375 inch 9.525 mm
Depth of cut maximum APMX/l2 0.625 inch 15.875 mm
Overall length OAL/l1 2 inch 50.8 mm
Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 0.375 inch 9.525 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
,
