Ceratizit H.SC.0,5.30°.Z2.F.HA.ML TI2000 CoreLine - End Mill - BlueLine 52344905 (0649323)
Ceratizit H.SC.0,5.30°.Z2.F.HA.ML TI2000 CoreLine - End Mill - BlueLine 52344905 (0649323)
Couldn't load pickup availability
Ceratizit Article Number: 52344905
Ceratizit Material Number: 5234490500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

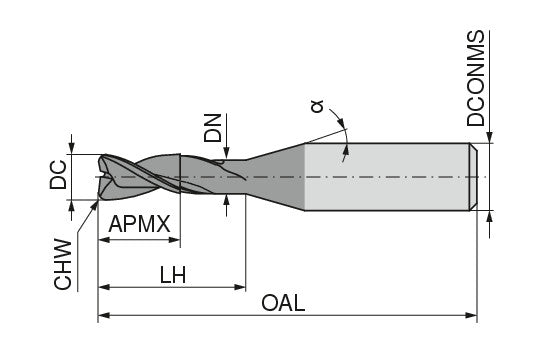

| Properties | ||
|---|---|---|
| Name | Ceratizit H.SC.0,5.30°.Z2.F.HA.ML TI2000 CoreLine - End Mill - BlueLine 52344905 | |
| EDP # | 0649323 | |
| Weight (1 pc.) | 1.0 oz | 24.4 g |
| Product-Carbon-Footprint | E | |
| Machining process - Main Application | Helical plunging | |
| Cutting diameter / DC e8 | 0.0197" | 0.500 mm |
| Depth of cut maximum / APMX | 0.0591" | 1.500 mm |
| Protruding length / LPR | 0.8661" | 22.000 mm |
| Overall length / OAL | 2.2835" | 58.000 mm |
| Alpha | 12.0000" | 304.800 mm |
| Mounting spigot diameter / DCONMS h5 | 0.2362" | 6.000 mm |
| Corner chamfer width / CHW | 8.0E-4 | |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti2000 | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
