Description
H.RD.0,8.30°.Z2.R0,4.HA.ML TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 5.0 mm, angle tolerance b and a: ± 0.5 °
Mat No: 5235290800, Article No: 52352908
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

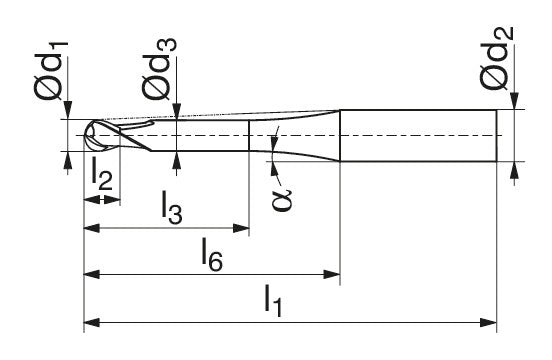

| Properties | ||
|---|---|---|
| Name | CERATIZIT H.RD.0,8.30°.Z2.R0,4.HA.ML TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5235290800 (0649657) | |
| EDP # | 0649657 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.4 oz | 11.4 g |
| Cutting diameter DC/d1 f8 | 0.0315 inch | 0.8 mm |
| Depth of cut maximum APMX/l2 | 0.0394 inch | 1 mm |
| Neck Diameter DN/d3 | 0.0295 inch | 0.75 mm |
| Head length LH/l3 | 0.063 inch | 1.6 mm |
| Alpha b° | 1.5 | |
| L6 l6 | 1.0630 inch | 27 mm |
| Protruding length LPR/l5 | 1.8504 inch | 47 mm |
| Overall length OAL/l1 | 2.9528 inch | 75 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.1181 inch | 3 mm |
| Corner radius RE/r | 0.0157 inch | 0.4 mm |
Application & Properties:
Suitable Materials:
