CERATIZIT H.TO.3,0.30°.Z2.R0,3.HA.ML TI2000 SOLID CARBIDE TORUS MILLING CUTTER 5236143003 (0649658)


Price:
Sale price$87.29
Stock:
Not in stock - Available to order

Description

H.TO.3,0.30°.Z2.R0,3.HA.ML TI2000 SOLID CARBIDE TORUS MILLING CUTTER

Mat No: 5236143003, Article No: 5236143003

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.TO.3,0.30°.Z2.R0,3.HA.ML TI2000 SOLID CARBIDE TORUS MILLING CUTTER 5236143003 (0649658)
EDP # 0649658
Workpiece Material(s) All Materials (White)
Weight 0.6 oz 17.9 g

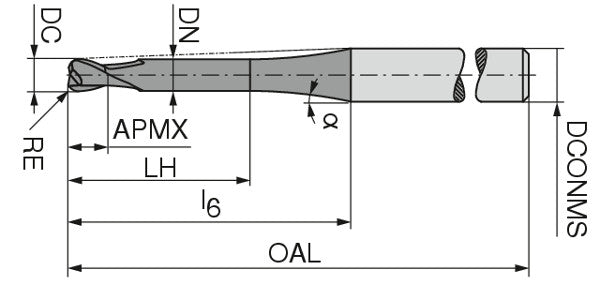

Peripheral effective cutting edge count ZEFP/Z 2
Cutting diameter DC/d1 e8 0.1181 inch 3 mm
Corner radius RE/r ±0.01 0.0118 inch 0.3 mm
Depth of cut maximum APMX/l2 0.1417 inch 3.6 mm
Neck Diameter DN/d3 0.1161 inch 2.95 mm
Head length LH/l3 0.2362 inch 6 mm
L6 l6 1.0630 inch 27 mm
Protruding length LPR/l5 1.8504 inch 47 mm
Overall length OAL/l1 2.9528 inch 75 mm
Alpha b° 1.5
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Suitable Materials:

Property imageProperty image
,
