CERATIZIT H.RD.2,0.30°.Z2.R1,0.HA.ML TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5235232000 (0649665)


Price:
Sale price$75.29
Stock:
Not in stock - Available to order

Description

H.RD.2,0.30°.Z2.R1,0.HA.ML TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 5.0 mm, angle tolerance b and a: ± 0.5 °

Mat No: 5235232000, Article No: 52352320

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.RD.2,0.30°.Z2.R1,0.HA.ML TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5235232000 (0649665)
EDP # 0649665
Workpiece Material(s) All Materials (White)
Weight 0.4 oz 12.6 g

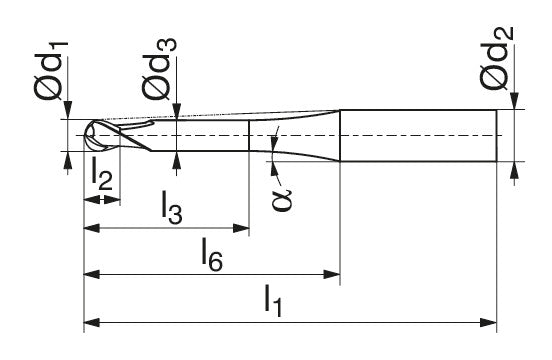

Cutting diameter DC/d1 f8 0.0787 inch 2 mm
Depth of cut maximum APMX/l2 0.0945 inch 2.4 mm
Neck Diameter DN/d3 0.0768 inch 1.95 mm
Head length LH/l3 0.1575 inch 4 mm
Alpha b° 1.5
L6 l6 1.0630 inch 27 mm
Protruding length LPR/l5 1.8504 inch 47 mm
Overall length OAL/l1 2.9528 inch 75 mm
Mounting spigot diameter DCONMS/d2 h6 0.1181 inch 3 mm
Corner radius RE/r 0.0394 inch 1 mm

Application & Properties:

Suitable Materials:
