Description
H.TO.2,0.30.Z2.R0,2.HA.ML TI2000 SOLID CARBIDE TORUS MILLING CUTTER
Mat No: 5236132002, Article No: 5236132002
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
High performance end mill for hardened steel
R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features,or,optimizing complex surfacing.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
Properties | ||
---|---|---|
Name | GRYSHREDR-2.000R0.20-4.00CTZ47.0-A29_5236132002 (0649672) | |
EDP # | 0649672 | |
Workpiece Material(s) | Steel (Blue) Hard/Tool Steel (Grey) | |
Weight | 0.4 oz | 12 g |

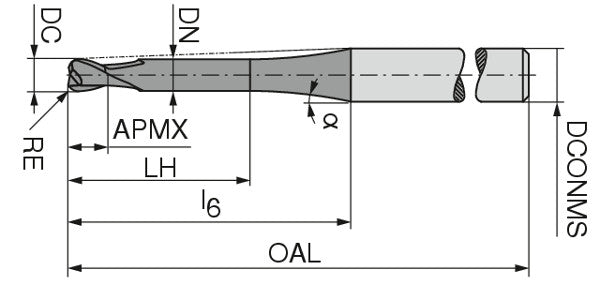

Cutting diameter DC/d1 e8 | 0.0787 inch | 2 mm |
Corner radius RE/r 0.01 | 0.0079 inch | 0.2 mm |
Depth of cut maximum APMX/l2 | 0.0945 inch | 2.4 mm |
Neck Diameter DN/d3 | 0.0768 inch | 1.95 mm |
Head length LH/l3 | 0.1575 inch | 4 mm |
L6 l6 | 1.062992125984252 inch | 27 mm |
Protruding length LPR/l5 | 1.8504 inch | 47 mm |
Overall length OAL/l1 | 2.9528 inch | 75 mm |
Alpha b | 1.5 | |
Mounting spigot diameter DCONMS/d2 h5 | 0.1181 inch | 3 mm |
Application & Properties:
Suitable Materials:
