CERATIZIT H.RD.8,0.30°.Z2.HB.EL TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5225908000 (0649674)


Price:
Sale price$121.00
Stock:
Not in stock - Available to order

Description

H.RD.8,0.30°.Z2.HB.EL TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Mat No: 5225908000, Article No: 52259080

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.RD.8,0.30°.Z2.HB.EL TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5225908000 (0649674)
EDP # 0649674
Workpiece Material(s) All Materials (White)
Weight 2.6 oz 73.6 g

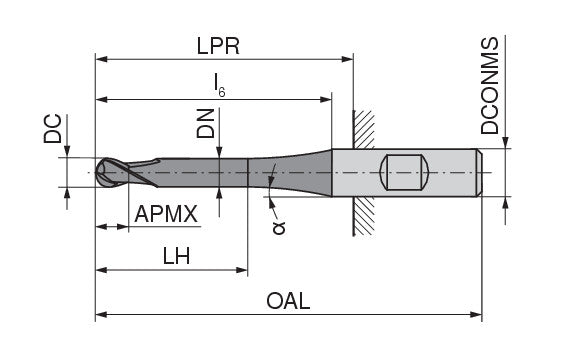

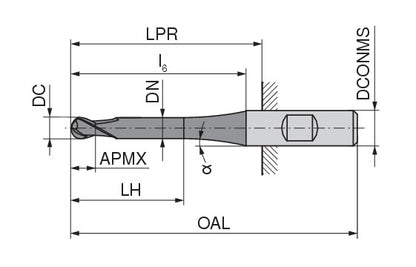

Cutting diameter DC/d1 f8 0.315 inch 8 mm
Depth of cut maximum APMX/l2 0.8661 inch 22 mm
Neck Diameter DN/d3 0.3071 inch 7.8 mm
Head length LH/l3 1.378 inch 35 mm
Protruding length LPR/l5 2.5197 inch 64 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.315 inch 8 mm

Application & Properties:

Suitable Materials:

Property imageProperty image
,
