GRYSTRIPR-10.00R5.00-18.0CTZ27.0-K26_5225710000 (0649676)


Price:
Sale price$89.33
Stock:
Re-stocking soon

Description

H.RD.10,0.30°.Z2.HB.K TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-10.00R5.00-18.0CTZ27.0-K26_5225710000 (0649676)
EDP # 0649676
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 2.6 oz 72 g

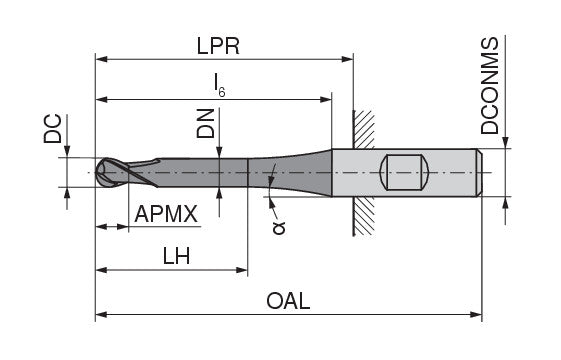

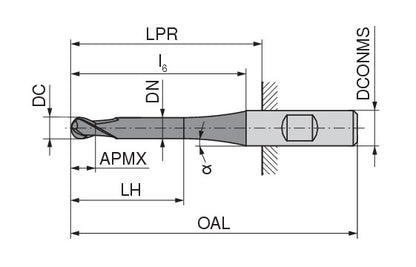

Cutting diameter DC/d1 f8 0.3937 inch 10 mm
Depth of cut maximum APMX/l2 0.5118 inch 13 mm
Neck Diameter DN/d3 0.3858 inch 9.8 mm
Head length LH/l3 0.7087 inch 18 mm
Protruding length LPR/l5 1.063 inch 27 mm
Overall length OAL/l1 2.6378 inch 67 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
