GRYSTRIPR-5.000R2.50-9.00CTZ64.0-F39_5240505300 (0649681)


Price:
Sale price$79.42
Stock:
Re-stocking soon

Description

H.RD.5,0.30°.Z4.HB.EL TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-5.000R2.50-9.00CTZ64.0-F39_5240505300 (0649681)
EDP # 0649681
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 1.7 oz 46 g

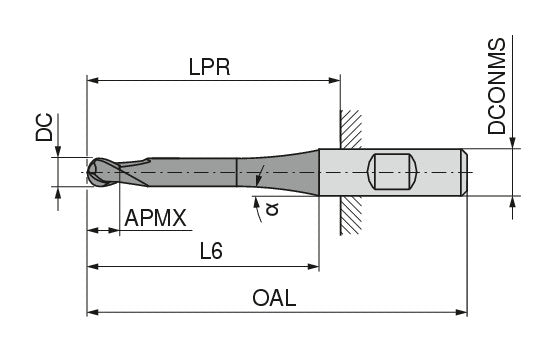

Cutting diameter DC/d1 f8 0.1969 inch 5 mm
Depth of cut maximum APMX/l2 0.3543 inch 9 mm
Alpha b° ±1 12
L6 l6 0.531496062992126 inch 13.5 mm
Protruding length LPR/l5 2.5197 inch 64 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
