GRYSHREDR-1.000R0.10-2.00CTZ47.0-A29_5236131001 (0649684)


Price:
Sale price$68.62
Stock:
Re-stocking soon

Description

H.TO.1,0.30°.Z2.R0,1.HA.ML TI2000 SOLID CARBIDE TORUS MILLING CUTTER

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSHREDR-1.000R0.10-2.00CTZ47.0-A29_5236131001 (0649684)
EDP # 0649684
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.4 oz 11 g

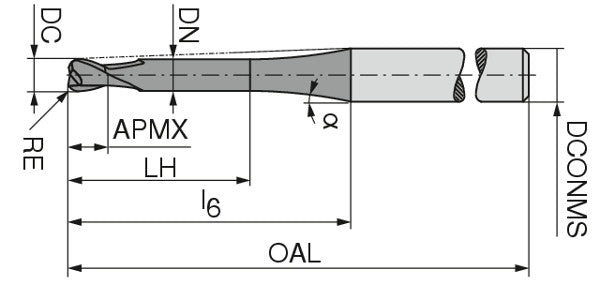

Peripheral effective cutting edge count ZEFP/Z 2
Cutting diameter DC/d1 e8 0.0394 inch 1 mm
Corner radius RE/r ±0.01 0.0039 inch 0.1 mm
Depth of cut maximum APMX/l2 0.0472 inch 1.2 mm
Neck Diameter DN/d3 0.0374 inch 0.95 mm
Head length LH/l3 0.0787 inch 2 mm
L6 l6 1.062992125984252 inch 27 mm
Protruding length LPR/l5 1.8504 inch 47 mm
Overall length OAL/l1 2.9528 inch 75 mm
Alpha b° 1.5
Mounting spigot diameter DCONMS/d2 h5 0.1181 inch 3 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
