BLUGLIDER-3.000R0.00-16.0CTZ22.0-C19_5234553000 (0649688)


Price:
Sale price$63.50
Stock:
Not in stock - Available to order

Description

H.SC.3,0.30.Z2.HA.ML4,5/16 TI2000 SOLID CARBIDE FINISH MILLING CUTTER T x = maximum engagement depth

Mat No: 5234553000, Article No: 52345530

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all,and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

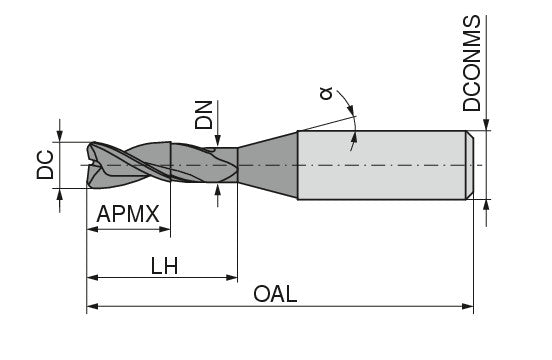

Properties
Name BLUGLIDER-3.000R0.00-16.0CTZ22.0-C19_5234553000 (0649688)
EDP # 0649688
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.4 oz 12 g
Cutting diameter DC/d1 -0.01 0.1181 inch 3 mm
Depth of cut maximum APMX/l2 0.1772 inch 4.5 mm
Neck Diameter DN/d3 0.115 inch 2.92 mm
Head length LH/l3 0.6299 inch 16 mm
Protruding length LPR/l5 0.8661 inch 22 mm
Overall length OAL/l1 1.9685 inch 50 mm
Alpha b 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
