BLUGLIDER-1.600R0.00-16.0CTZ22.0-C19_5234631600 (0649697)


Price:
Sale price$55.12
Stock:
Re-stocking soon

Description

H.SC.1,6.30°.Z2.HA.L2,4/16 TI2000 SOLID CARBIDE FINISH MILLING CUTTER T x = maximum engagement depth

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

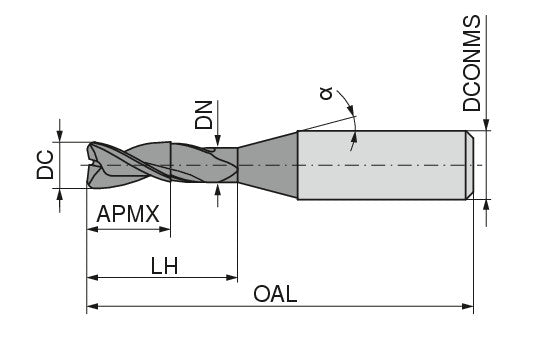

Properties
Name BLUGLIDER-1.600R0.00-16.0CTZ22.0-C19_5234631600 (0649697)
EDP # 0649697
Workpiece Material(s) Steel (Blue)Hard/Tool Steel (Grey)
Weight 0.4 oz 11 g
Cutting diameter DC/d1 -0,01 0.063 inch 1.6 mm
Depth of cut maximum APMX/l2 0.0945 inch 2.4 mm
Neck Diameter DN/d3 0.0594 inch 1.51 mm
Head length LH/l3 0.6299 inch 16 mm
Protruding length LPR/l5 0.8661 inch 22 mm
Overall length OAL/l1 1.9685 inch 50 mm
Alpha b° 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
