BLUSHREDR-1.500R0.50-12.0CTZ26.0-C21_5234971505 (0649709)


Price:
Sale price$61.43
Stock:
Not in stock - Available to order

Description

H.TO.1,5.30.Z2.R0,5.HA.ML1,5/12 TI2000 SOLID CARBIDE TORUS MILLING CUTTER T x = maximum engagement depth

Mat No: 5234971505, Article No: 5234971505

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features,or,optimizing complex surfacing.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUSHREDR-1.500R0.50-12.0CTZ26.0-C21_5234971505 (0649709)
EDP # 0649709
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.4 oz 12 g

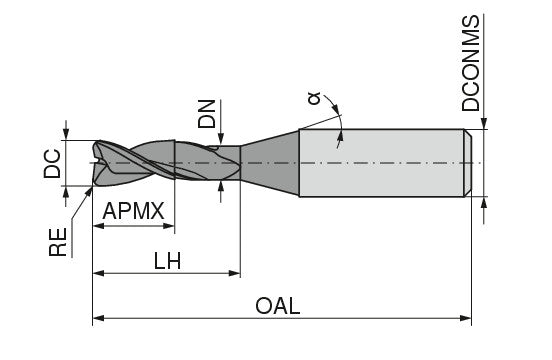

Cutting diameter DC/d1 -0.012 0.0591 inch 1.5 mm
Corner radius RE/r 0.005 0.0197 inch 0.5 mm
Depth of cut maximum APMX/l2 0.0591 inch 1.5 mm
Neck Diameter DN/d3 0.0567 inch 1.44 mm
Head length LH/l3 0.4724 inch 12 mm
Protruding length LPR/l5 1.0236 inch 26 mm
Overall length OAL/l1 2.126 inch 54 mm
Alpha b 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
