BLUSHREDR-1.500R0.50-16.0CTZ26.0-C21_5235031505 (0649710)


Price:
Sale price$53.32
Stock:
Re-stocking soon

Description

H.TO.1,5.30°.Z2.R0,5.HA.L16 TI2000 SOLID CARBIDE TORUS MILLING CUTTER T x = maximum engagement depth

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUSHREDR-1.500R0.50-16.0CTZ26.0-C21_5235031505 (0649710)
EDP # 0649710
Workpiece Material(s) Steel (Blue)Hard/Tool Steel (Grey)
Weight 0.4 oz 12 g

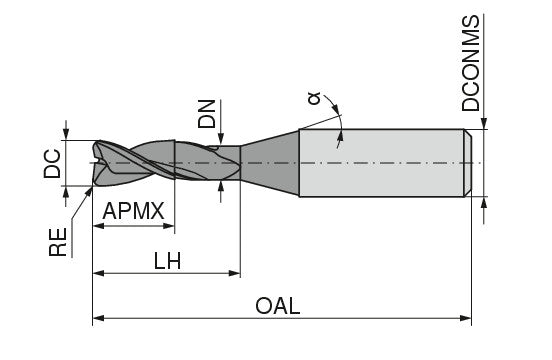

Cutting diameter DC/d1 -0,012 0.0591 inch 1.5 mm
Corner radius RE/r ±0,005 0.0197 inch 0.5 mm
Depth of cut maximum APMX/l2 0.0591 inch 1.5 mm
Neck Diameter DN/d3 0.0567 inch 1.44 mm
Head length LH/l3 0.6299 inch 16 mm
Protruding length LPR/l5 1.0236 inch 26 mm
Overall length OAL/l1 2.126 inch 54 mm
Alpha b° 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
