CERATIZIT H.TO.1,5.30°.Z2.R0,5.HA.L20 TI2000 SOLID CARBIDE TORUS MILLING CUTTER 5235041505 (0649711)


Price:
Sale price$61.43
Stock:
Not in stock - Available to order

Description

H.TO.1,5.30°.Z2.R0,5.HA.L20 TI2000 SOLID CARBIDE TORUS MILLING CUTTER T x = maximum engagement depth

Mat No: 5235041505, Article No: 5235041505

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.TO.1,5.30°.Z2.R0,5.HA.L20 TI2000 SOLID CARBIDE TORUS MILLING CUTTER 5235041505 (0649711)
EDP # 0649711
Workpiece Material(s) All Materials (White)
Weight 0.4 oz 12.5 g

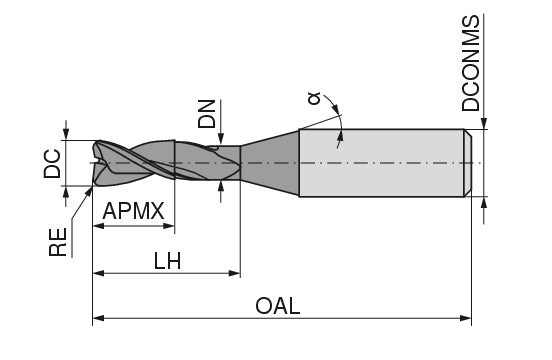

Cutting diameter DC/d1 -0.012 0.0591 inch 1.5 mm
Corner radius RE/r ±0.005 0.0197 inch 0.5 mm
Depth of cut maximum APMX/l2 0.0591 inch 1.5 mm
Neck Diameter DN/d3 0.0567 inch 1.44 mm
Head length LH/l3 0.7874 inch 20 mm
Protruding length LPR/l5 1.2598 inch 32 mm
Overall length OAL/l1 2.3622 inch 60 mm
Alpha b° 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Suitable Materials:

Property imageProperty image
,
