GRYSTRIPR-2.500R1.25-10.0CTZ44.0-F31_5225802500 (0649721)


Price:
Sale price$66.48
Stock:
Re-stocking soon

Description

H.RD.2,5.30°.Z2.HA.EL80 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-2.500R1.25-10.0CTZ44.0-F31_5225802500 (0649721)
EDP # 0649721
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 1.2 oz 33 g

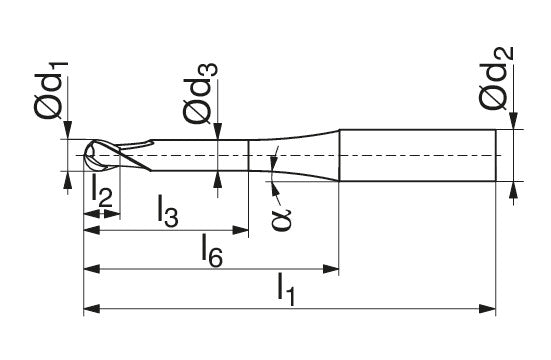

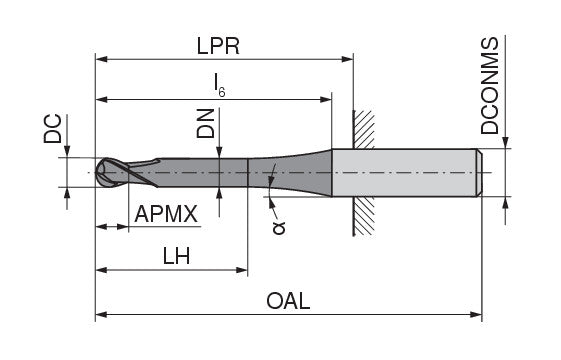

Cutting diameter DC/d1 f8 0.0984 inch 2.5 mm
Depth of cut maximum APMX/l2 0.315 inch 8 mm
Neck Diameter DN/d3 0.0906 inch 2.3 mm
Head length LH/l3 0.3937 inch 10 mm
Alpha b° ±0.5 10
L6 l6 0.7874015748031497 inch 20 mm
Protruding length LPR/l5 1.7323 inch 44 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
