GRYSTRIPR-5.000R2.50-9.00CTZ47.0-E29_5240405200 (0649726)


Price:
Sale price$75.47
Stock:
Re-stocking soon

Description

H.RD.5,0.30°.Z4.HA.EL75 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-5.000R2.50-9.00CTZ47.0-E29_5240405200 (0649726)
EDP # 0649726
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.9 oz 24 g

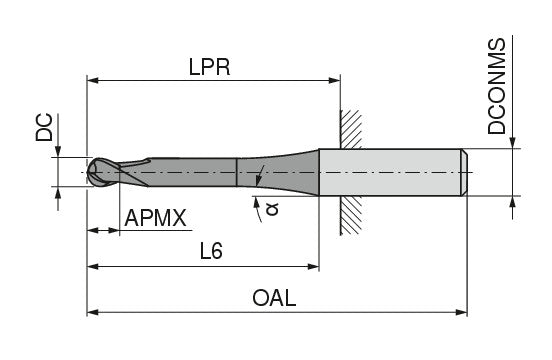

Peripheral effective cutting edge count ZEFP/Z 4
Cutting diameter DC/d1 f8 0.1969 inch 5 mm
Depth of cut maximum APMX/l2 0.3543 inch 9 mm
Protruding length LPR/l5 1.8504 inch 47 mm
Overall length OAL/l1 2.9528 inch 75 mm
Mounting spigot diameter DCONMS/d2 h6 0.1969 inch 5 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
