GRYSHREDR-0.250R0.12-0.80CTZ10.0-A14_5225692500 (0649748)


Price:
Sale price$92.81
Stock:
Re-stocking soon

Description

H.RD.0,25.30°.Z2.HA.K38 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSHREDR-0.250R0.12-0.80CTZ10.0-A14_5225692500 (0649748)
EDP # 0649748
Workpiece Material(s) Steel (Blue)Hard/Tool Steel (Grey)
Weight 0.2 oz 6 g

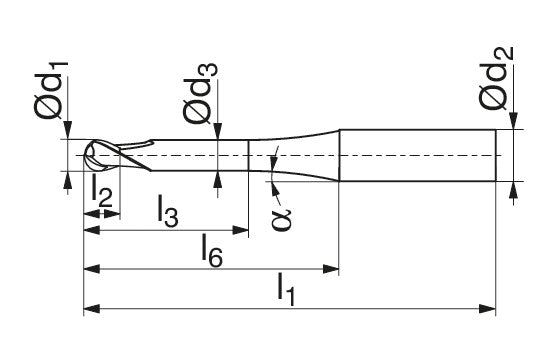

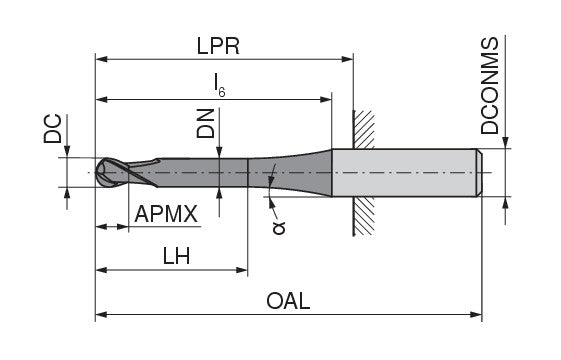

Cutting diameter DC/d1 f8 0.0098 inch 0.25 mm
Depth of cut maximum APMX/l2 0.0197 inch 0.5 mm
Neck Diameter DN/d3 0.0079 inch 0.2 mm
Head length LH/l3 0.0315 inch 0.8 mm
Alpha b° ±0,5 7
L6 l6 0.4724409448818898 inch 12 mm
Protruding length LPR/l5 0.3937 inch 10 mm
Overall length OAL/l1 1.4961 inch 38 mm
Mounting spigot diameter DCONMS/d2 h6 0.1181 inch 3 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
