BLUSHREDR-2.000R0.30-6.00CTZ22.0-C19_5234942003 (0649756)


Price:
Sale price$52.98
Stock:
Re-stocking soon

Description

H.TO.2,0.30°.Z2.R0,3.HA.ML2,0/6,0 TI2000 SOLID CARBIDE TORUS MILLING CUTTER T x = maximum engagement depth

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUSHREDR-2.000R0.30-6.00CTZ22.0-C19_5234942003 (0649756)
EDP # 0649756
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.5 oz 13 g

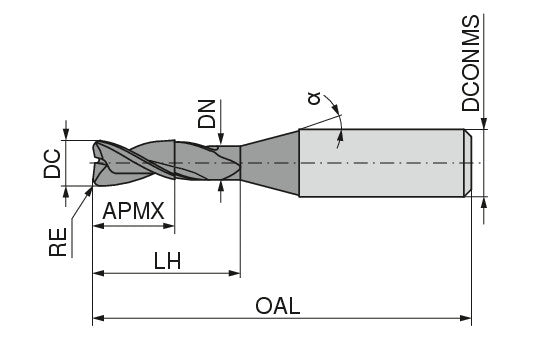

Cutting diameter DC/d1 -0.012 0.0787 inch 2 mm
Corner radius RE/r ±0.005 0.0118 inch 0.3 mm
Depth of cut maximum APMX/l2 0.0787 inch 2 mm
Neck Diameter DN/d3 0.0752 inch 1.91 mm
Head length LH/l3 0.2362 inch 6 mm
Protruding length LPR/l5 0.8661 inch 22 mm
Overall length OAL/l1 1.9685 inch 50 mm
Alpha b° 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
